Contact AWG 30 to 22
.jpg)
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- AWG 26 to 22
- AWG 30 to 26
| Article Number | SSFH-001T-P0.5 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.13 to 0.33 (AWG #26 to #22) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 300 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

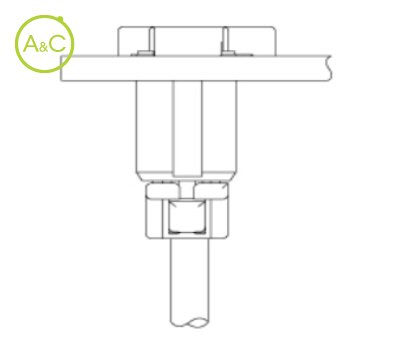

JST extends its broad range of LED connectors with the addition of the LEX connector. Designed for the LED lighting industry, this 2.5mm pitch, 2 way wire to board connector has been designed as a low profile bottom mounting type connector, with a profile height of 1.25mm at the connector mounting side. This provides a space saving solution for all general LED lighting applications.
This surface mount (SMT) connector is suitable for a wire range of 30 to 22 AWG. It is also designed with a secure lock and a mechanism for preventing mis-insertion. The LEX connector is manufactured using Halogen free and RoHS compliant materials, thus taking into consideration relevant environmental factors.
Low profile and space saving design
Secure lock mechanism
Mechanism for preventing wrong insertion
Halogen free and RoHS Compliant
