Female Connector for MFP Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
- General
| Article Number | MFP-128SK-1402MB © |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.65mm Pitch Socket for Flash Package |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.65 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

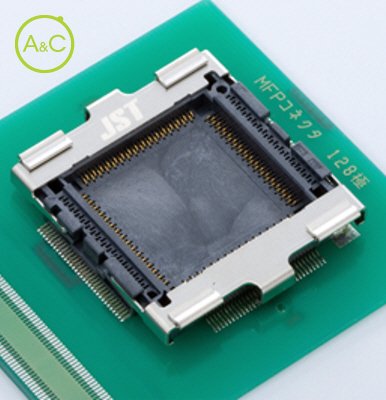

This connector is an IC socket corresponding to the flash package for memory of picture in game machine.
High reliability of connection

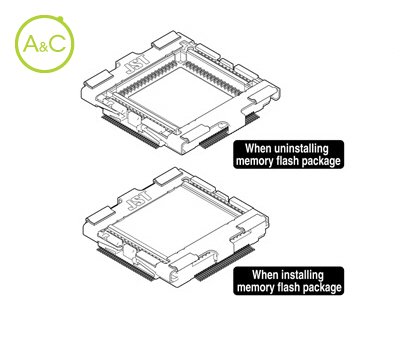

Adopting the holding mechanism by the metal slider
Use of an exclusive jig for mounting and dismounting (injustice prevention)
Structure of preventing miss-mounted connector on PC board and miss-installed memory flash package into the connector
Product with dust cover is provided as standard product
RoHS Compliant
