Cap for Dust

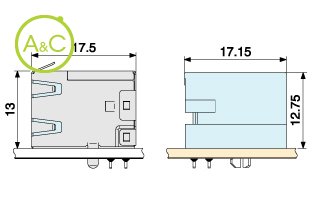

  • MJ-8P CONNECTOR
Download product sheet

Number Of Poles

  • 8
Article Number MJ-JP68K
Number Of Contacts 8
Upper Temperature +80 °C
Lower Temperature -40 °C
General Description Modular Jack Connectors (RJ45)
Connection Type Interface Connection Connectors
Rated Current (ac/dc) 1.3 A
Rated Voltage (ac/dc) 250 V
Standard RJ45
Characteristics differ between variants of a connector
Upper contact point The MJ connector has an upper contact point design. With this construction, the contact points are free from dust even before the connector is mated with the modular plug. Metal hook The MJ connector has metal hooks, which provides click feeling when mounted on a PC board, and are soldered later. With these hooks, the connector can be securely mounted on the board, resistant against the external forces applied by the wires of the plug. *Low profile type 8 circuits MJ connector with plastic hooks is also available. Shielding effect By covering the whole connector, it provides a high quality shielding effect. Grounding By soldering the Shield Cover (the spring part), it provides secure grounding through the Hook to the PC board. Standards UL Recognized E174260 CSA Certified LR20812 Conforms to FCC Standards RoHS Compliant
