Connector for button batteries
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Battery
- 414
- 518
- 614
- 621
| Article Number | PB-414SR12K-TF | PB-414SS12-TF |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | For Button Battery | For Button Battery |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pcb Mount Style | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) |
| Remark* | / | Low profile |
Characteristics differ between variants of a connector

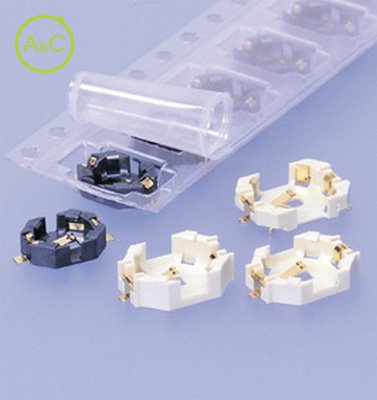

Featuring double contact points, secure locking and surface mountability, this button battery connector not only offers great performance, but is also quick and easy to process and apply to the PCB.
Designed for mobile phones and other small mobile devices, this button battery connector is suitable for use with most common button batteries (e.g. types; 414, 518, 614 & 621).
Resistant to the shock
Metal hooks:
614 type holds the battery with the 4 independant contacts.

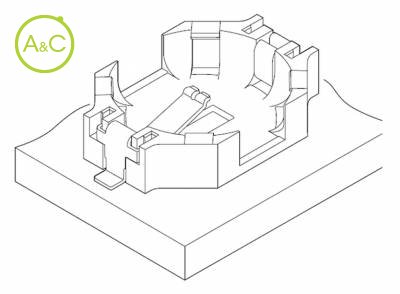

Resin hooks:
414/518/614/621 types hold the battery with the housing intergrated fingers.
Double contact point
The contact has double contact points for secure contact performance.
Standards
UL Recognized E60389
RoHS Compliant
