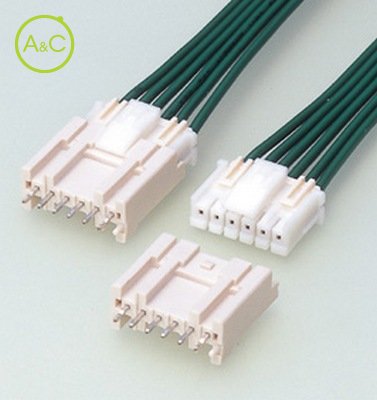

Housing for PXA Connector

  • PXA CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 6
Article Number PXARP-02V
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Characteristics differ between variants of a connector

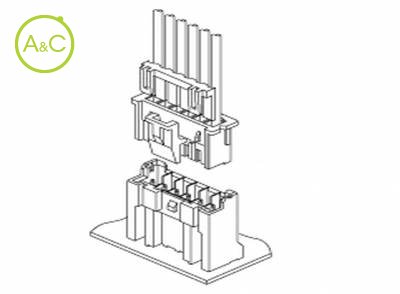

Secondary retainer mountable 2.5mm (.098") pitch high box type, with 20.5mm (.807") mounting height. Fully shrouded header has the walls between every circuit to consider at the structure against vibration or prying. Secure locking device The housing has a locking device to securely hold the header, preventing accidental diSConnection, because of external force that might result from the routing of wires or of vibration, inverse insertion and mating with incorrect circuit. Fully shrouded header Shrouded header provides the longer creepage distance and countermeasure for distorted extraction of connector. Header for use specifically with resin coated ("potted") PC boards. PC board layout is exactly same as XA connector Secondary retainer The secondary retainer is optionally available. This retainer ensures that the contacts are fully seated and locked in the housing and prevents their accidental release. Installed after the contacts are inserted, the secondary retainer locks and secures the contacts. Retainer is designed to be common with XA connector and XM connector. RoHS Compliant
