Connector Tin-plated

  • RC CONNECTOR
Download product sheet

Number Of Poles

  • 10
  • 14
  • 16
  • 20
  • 26
  • 34
  • 40
  • 50
  • 60
Article Number RC-D10-290
Number Of Contacts 10
Upper Temperature +105 °C
Lower Temperature -55 °C
General Description 2.54mm Pitch Board-in IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.54 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 300 V
Pcb Mount Style Through-hole Technology (THT)
Characteristics differ between variants of a connector

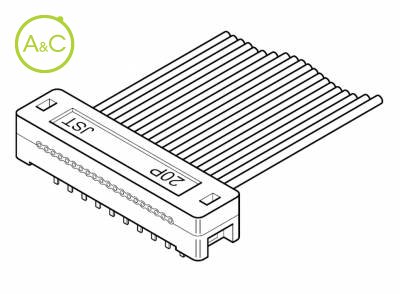

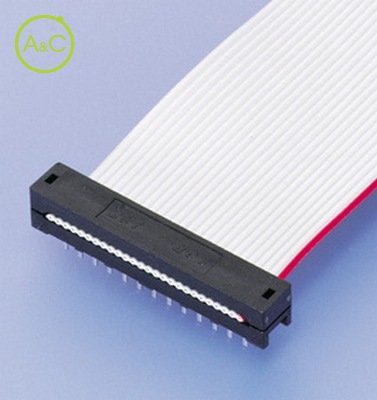

The RC connector is a board-in type insulation displacement connector for 1.27mm (.050") pitch ribbon cables. The number of positions match the RA diSConnectable connector series so that they can be used as a pair on opposite ends of a harness. Low profile with high-density mounting The RC board-in connector has a low profile with a mounting height of 6.8mm (.268") and a width of 6.54mm (.257"). It allows 2.54mm (.100") pitch grid wiring for high density. Use with an RA connector This connector and a RA diSConnectable connector can be used as a pair on opposite ends of a harness to reduce costs and mounting space. Two kinds of plating The contact comes in gold and tin-plated versions. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
