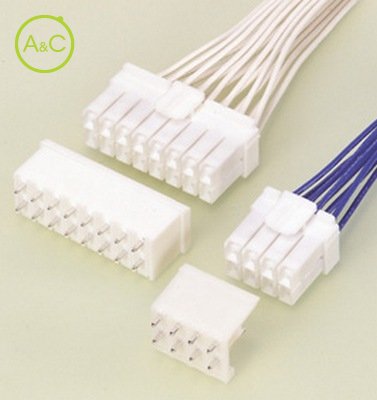

Side Entry Shrouded Header THT HDB Type

  • XL CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 4
Article Number S02P-XL-HDB
Number Of Contacts 2
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style 5.00 mm
Rated Current (ac/dc) 10 A
Rated Voltage (ac/dc) 150 V
Pcb Mount Style Through-hole Technology (THT)
Remark* Secure locking device
Characteristics differ between variants of a connector

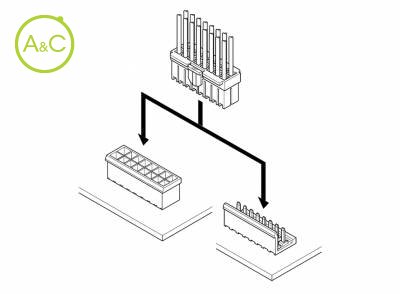

The XL connectors can be used for wire-to-wire or wire-to-board connections. Since all contacts are individually and totally surrounded by housing walls, and since the connector pitch is 5.0mm (.197"), the creep and space distances between the contacts are large enough to meet stringent safety requirements. The box-shaped contact is adaptable to a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits. Reliable housing construction Since all contacts are individually and totally surrounded by housing walls, and since the connector pitch is 5.0mm (.197"), the creep and space distances between the contacts are large enough to meet stringent saftey requirements. Easy contact insertion The contacts can be inserted into the housing easily and smoothly. Box-shaped contact The box-shaped contact used successfully in the VH and NH connectors is also used in the XL connectors. This contact is adaptable to a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits. Two kinds of connections The XL connectors can be used for wire-to-wire connection and for printed circuit board connection. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75150 RoHS Compliant
