Side Entry Header THT
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 10
| Article Number | S10-FOXK-LF |
| Number Of Contacts | 10 |
| Upper Temperature | +90 °C |
| Lower Temperature | -40 °C |
| General Description | 1.25mm Pitch Connector for FFC |
| Connection Type | Automotive |
| Pitch / Style | 1.25 mm |
| Rated Current (ac/dc) | 1.5 A |
| Rated Voltage (ac/dc) | 12 V |
Characteristics differ between variants of a connector

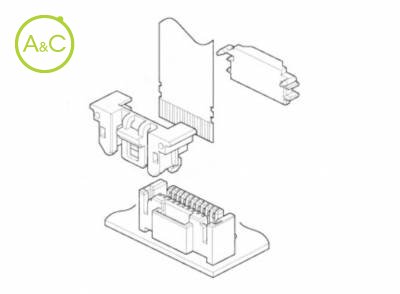

The FOX Connector for FFC achieves high operability on the automobile assembly process. In addition, locking structure is provided on the FFC side to improve reliability of the connector.
Reliable locking structure
Locking structure is provided on the FFC side to prevent incomplete mating and improve FFC retention force greatly.
High resistance to SCooping (kojiri)
This connector has high resistance to SCooping (kojiri) insertion and withdrawal as well as general connectors for automobile by mounting a plug housing and a retainer on the FFC side.
Temporary board retention feature
The connector can be temporarily held on a printed circuit board by clinching the contact solder tail. It prevents lifting of the connector.
Two types of connections
This connector is available in top and side entry type depending on its mounting designs.
RoHS Compliant
