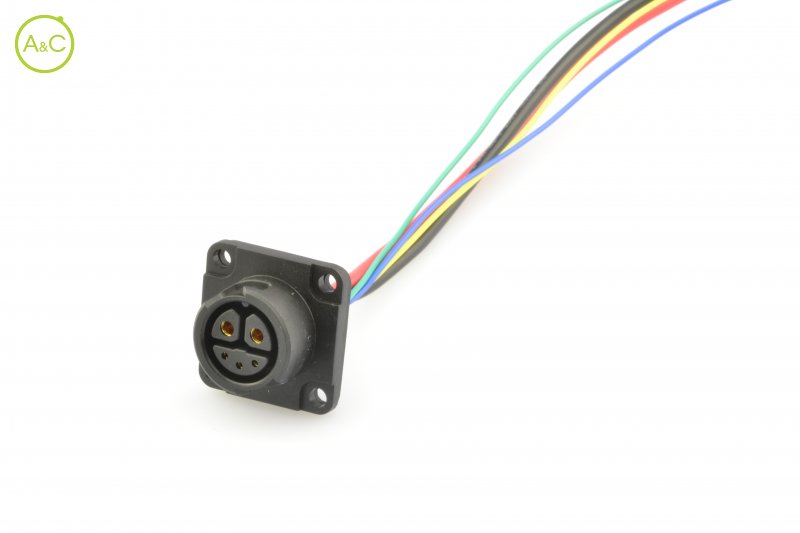

Female panel mount connector

  • Self-locking

Number Of Poles

  • 5 (2+3)
Article Number S526AM C 00 B9 0300
Color Black/Purple

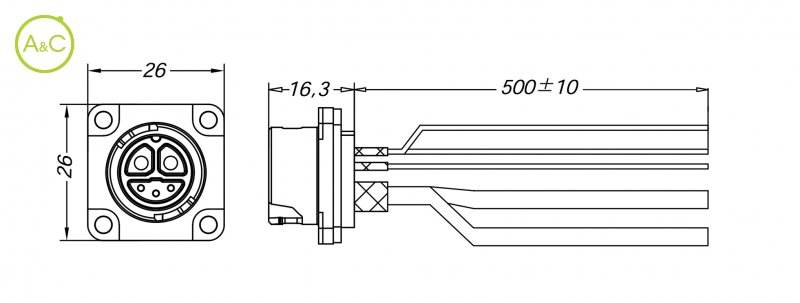

Connector Diameter 26,0 x 26,0 mm
Wire Section 2 x 2,0 + 3 x 0,2 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 25 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold plated
Characteristics differ between variants of a connector
