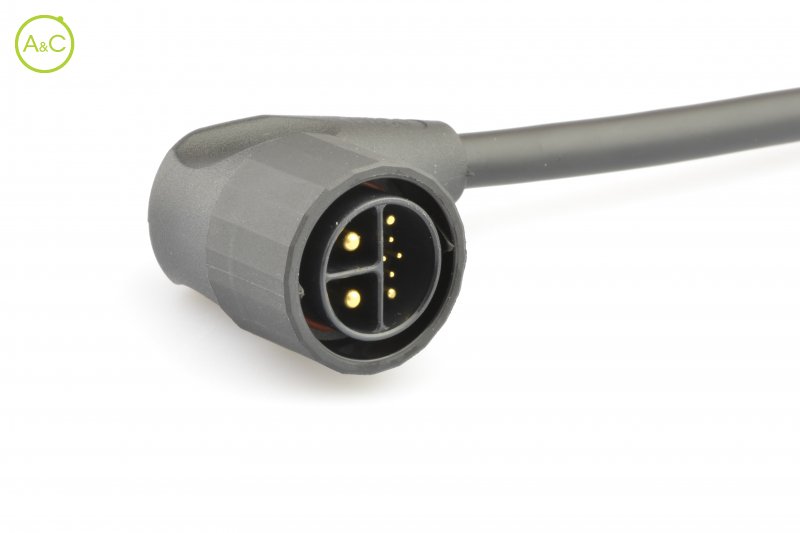

Male cable connector, self-locking

  • Charging & discharging in 1, self-locking

Number Of Poles

  • 8 (2+2+4)
Article Number S828AG A 00 FM 1000
Color Black

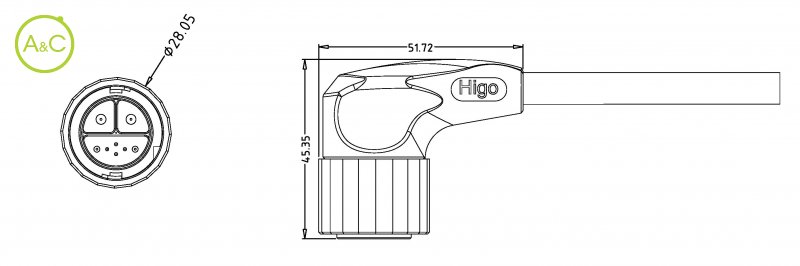

Connector Diameter 28.05 mm
Wire Section 2 x 2,5 + 2 x 1,3 + 4 x 0,2 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Cable Diameter 8 mm
Insulation Wire FEP
Remark Other cable length/type on request
Rated Current 25 / 10 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Material Jacket PVC
Characteristics differ between variants of a connector
