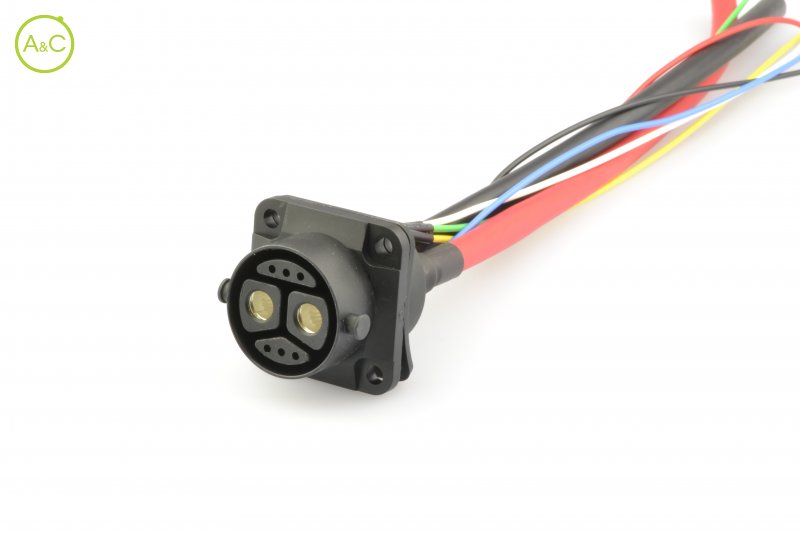

Female panel mount connector

  • Manual Locking

Number Of Poles

  • 8 (2+6)
Article Number S835AM C 00 HB 0300
Color Black

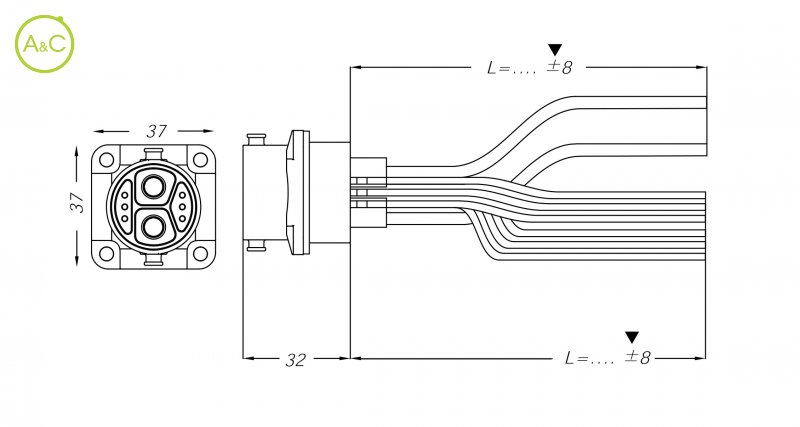

Connector Diameter 37 x 37 mm
Wire Section 2 x 16,0 + 6 x 0,5 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 100 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver plated
Characteristics differ between variants of a connector
