Top Entry Header (THT)

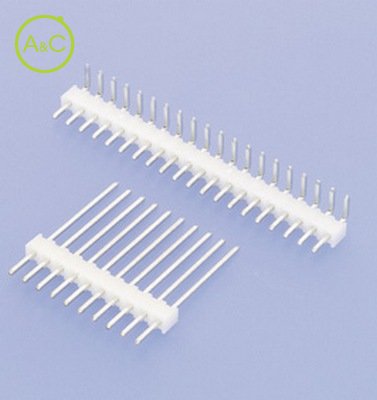

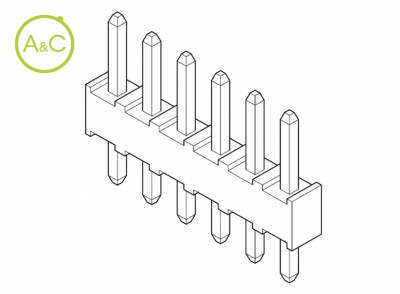

  • 2.5SB HEADER
Download product sheet

Total Height

  • 9.9 mm
  • 10.8 mm
  • 12.5 mm
  • 12.7 mm
  • 14.1 mm
  • 14.2 mm
  • 16.0 mm
  • 17.8 mm
  • 19.8 mm
  • 20.4 mm
  • 21.5 mm
  • 23.3 mm
  • 24.8 mm
Article Number SB(*)P-HVQ-15
Number Of Contacts 2-20
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Header
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Remark* /
Remark** The number of circuits (2 to 20) should be inserted in (*)
Characteristics differ between variants of a connector
The SB headers can be used to connect any 2.5mm (.098") receptacles to printed circuit boards. They can also be used to directly connect PC boards. They come in pitches of 2.5mm (.098") and in both top entry and side entry type models. 2.54mm (.100") pitch SB headers are also available. In addition, 2.0mm (.079") pitch BC headers are available. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
