Pin Contact AWG 28 to 22
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- AWG 28 to 22
| Article Number | SBHM-001T-P0.5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 4mm/8mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.08 to 0.33 (AWG #28 to #22) mm² |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 4.0/8.0 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 600 V |
Characteristics differ between variants of a connector

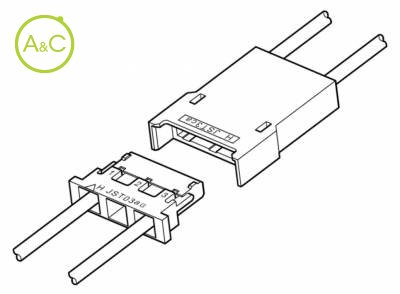

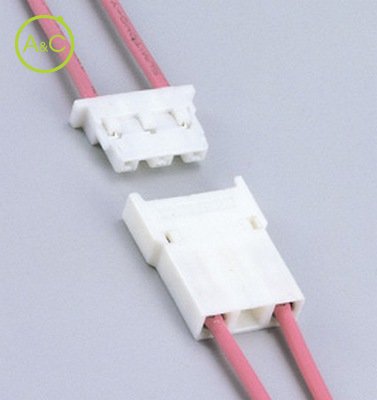

Wire-to-wire version connectors, designed for liquid crystal display back light lamps.
Contact lances
Contacts are secured in the housing by their spring action, thus fully shrouded. This helps improve the withstanding voltage.
Box shaped housing
Box shaped construction of the housing prevents distortion during mating and unmating of the housings. Withstanding voltage is also considered.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
