JST
Applicable Wire
- AWG 28 to 22
| Article Number | SCN-001T-1.0K | SCN-001T-P1.0 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Board-in Crimp Style | 2.5mm Pitch Board-in Crimp Style |
| Applicable Wire Size | 0.08 to 0.33 (AWG #28 to #22) mm² | 0.08 to 0.33 (AWG #28 to #22) mm² |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Type B | Type A |
Characteristics differ between variants of a connector

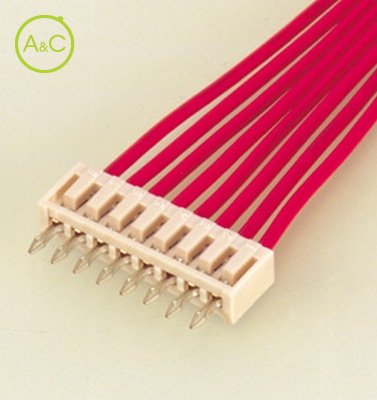

This 2.5mm (.098") pitch multi-circuit board-in connector meets the needs for high-density mounting on printed circuit boards efficiently and economically.
The connector can be used for VCRs, car stereo systems, audio products, and many other consumer-oriented electronic products.
Housing lances
The lances on the resilient housing ensure easy and secure insertion into the housing.

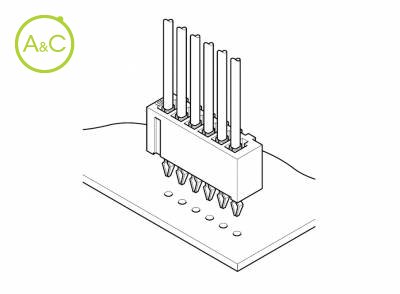

Secure mounting on printed circuit boards
The solder tail of the contact has a compliant retention feature, making insertion into printed circuit boards easy, and ensuring secure mounting.
Two types of contacts
Type A
The compliant solder tail of this contact is split in two for greater deflection. This promotes easy insertion and secure mounting on printed circuit boards.
Type B
The two halves of the compliant solder tail are joined at the tip. This additional support provides a sturdy pin that resists deformation during shipping and handling.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
