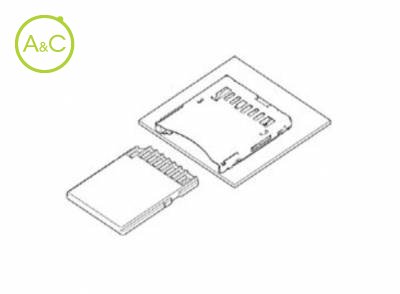

Reversed Connector for SD Card and Multi Media Card
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 9
| Article Number | SDKR-9BRS-K13-G-TB |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | SD Card Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 5 V |
| Standard | SD |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector
This connector is designed for SD Card & MMC (Multi Media Card), complying with the SD Card Association standard, and is with the switch for Write-protection & Card detection. Due to Push-push mechanism design, its card can be easily ejected by push-push operation.
Space saving design, 24.1mm(W)x30.1mm(D)x2.8mm(H)
The enough amount of card ejection (8.4mm)
10,000 mating cycles is guaranteed
Prevention of reverse card insertion
RoHS Compliant
