Housing for SFD Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 10
| Article Number | SFDR-10V-S (HF) |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.1mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.1 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark* | Secure locking device |
Characteristics differ between variants of a connector

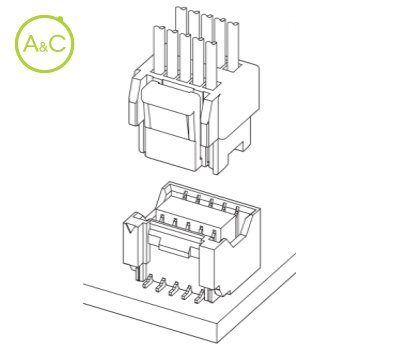

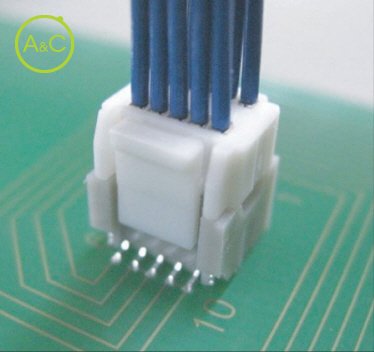

JST introduces the new SFD connector series, this LED backlight power supply surface mount connector is a crimp style wire to board connector that has been primarily designed and developed for LCD televisions.
This 10 position connector has a secure locking feature and is available in embossed tape reel packaging to enable high speed processing.
Conforming to the RoHS legislation, the housing and header are manufactured using halogen free materials.
Secure lock
Halogen free
EC directive 2002/95/EC (the RoHS Directive) - Compliant
