More info on this brand:
JST
JST
Applicable Wire
- AWG 30 to 26
| Article Number | SGVH-002T-P0.2 | SGVHSF-002T-0.2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.25mm Pitch Disconnectable Crimp Style | 1.25mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.05 to 0.13 (AWG #30 to #26) mm² | 0.05 to 0.13 (AWG #30 to #26) mm² |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.25 mm | 1.25 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) |
| Remark* | Normal type | Side feed type |
Characteristics differ between variants of a connector

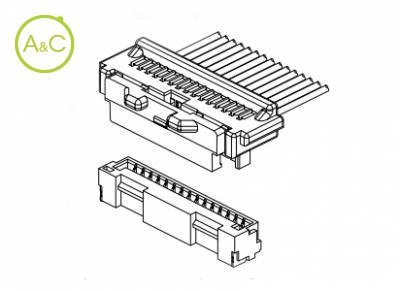

This connector can be mounted on the same PC board layout as the GH connector and has the sucking area on the top of the connector without suction tape.
Secure locking structure
Prevention of contact deformation
Sucking area
RoHS Compliant
