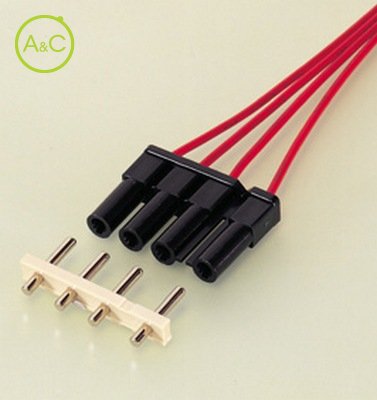

  • LV CONNECTOR
Download product sheet

Applicable Wire

  • AWG 24 to 18
  • AWG 24 to 20
Article Number SVF-01T-2.36LN
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 8mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.2 to 0.83 (AWG #24 to #18) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 8.00 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Characteristics differ between variants of a connector

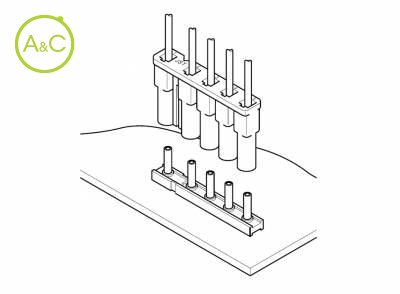

This connector can be connected for headers having 2.36mm (.093") diameter pins. The mating section of the contact has a triangular configuration so that the terminal grips the round mating pin at three points. One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion. Three-point contact The mating section of the contact has a triangular configuration so that the terminal grips the round mating pin at three points. Furthermore, this contact keeps its high force after mating and unmating many times, thus assuring high reliability. Anti-misinsertion construction The pitch between positions 1 and 2 of the housings and the headers having three or more circuits is 10.0mm (.394"), while the pitch of the other circuits is 8.0mm (.315"). This provides polarization which in turn prevents mismating the connector. Flux entry prevention The solder side of the header pins are closed so as to completely prevent flux or solder from entering. The tight press-fit of the pin into the header insulator also prevents flux from coming up the pin. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75121 RoHS Compliant
