Contact AWG 24 to 20
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- General
- AWG 24 to 20
| Article Number | SXA-01T-P0.6 | SXAM-01T-P0.6 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to board) | 2.5mm Pitch Disconnectable Crimp Style (Wire to wire) |
| Applicable Wire Size | 0.22 to 0.5 (AWG #24 to #20) mm² | 0.22 to 0.5 (AWG #24 to #20) mm² |
| Connection Type | Printed Circuit Board Connectors | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

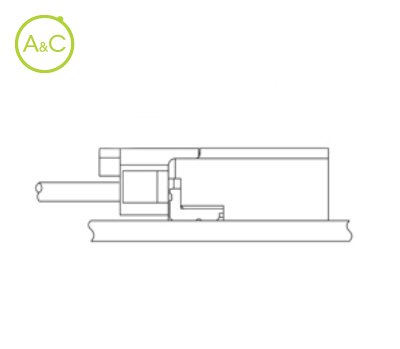

JST introduces the new XAG connector series, with a pitch size of 2.5mm. This connector series consists of plug and receptacle, which allow wire-to-wire configurations, and side entry SMT header assemblies, which offer wire to board connections.
The plug housing features a side pincer lock mechanism to secure the mating into the receptacle/header. The wire-to-wire system has a panel lock mechanism making it possible to mount on the panel. These robust connectors are available with a secondary retainer to ensure the contacts are fully locked into the housing and prevent accidental release.
Molded in a RoHS compliant PA6T Nylon (SMT Headers), the single row, crimp style connector series is available in 5 circuits.
The XAG connector was orginally designed for Electronic Toll Collection (ETC) devices. An ETC is an on-board device that provides non-stop automatic expressway toll payment processing, which allows you to pass directly through the ETC lane at the tollbooth.
Low profile
Secure locking mechanism
Retainer
Panel locking mechanism
RoHS Compliant
