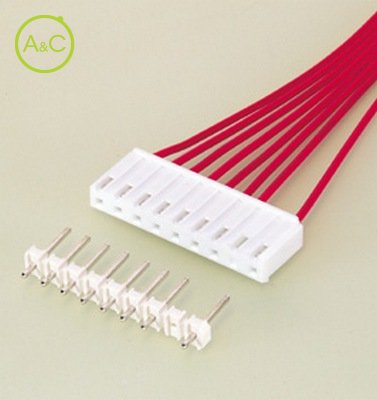

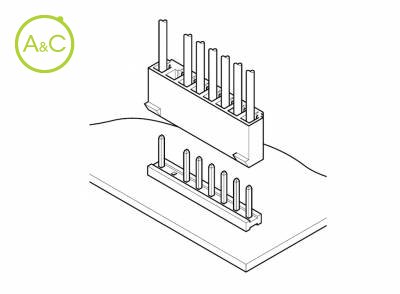

Housing for VB Connector
- VB CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 12
| Article Number | VBR-2 | VBR-2(3) |
| Number Of Contacts | 2 | 2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A | 7.0 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Housing 13 poles, 12 contacts | Housing 3 poles, 2 contacts |
| Article Number | VBR-3 | VBR-3(4) |
| Number Of Contacts | 3 | 3 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A | 7.0 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Housing 13 poles, 12 contacts | Housing 4 poles, 3 contacts |
| Article Number | VBR-4 | VBR-4(5) |
| Number Of Contacts | 4 | 4 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A | 7.0 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Housing 13 poles, 12 contacts | Housing 5 poles, 4 contacts |
| Article Number | VBR-5(6) |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Housing 6 poles, 5 contacts |
| Article Number | VBR-6(7) |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Housing 7 poles, 6 contacts |
| Article Number | VBR-7(8) |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Housing 8 poles, 7 contacts |
| Article Number | VBR-8(9) |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Housing 9 poles, 8 contacts |
| Article Number | VBR-9(10) |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Housing 10 poles, 9 contacts |
| Article Number | VBR-12(13) |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Housing 13 poles, 12 contacts |
Characteristics differ between variants of a connector
This large current carrying capacity connector can be used with primary power supply circuits of consumer electronic products and various other circuits requiring large currents.
Proven box-shaped contact
This connector was designed and developed for use in the power supply circuits utilizing the contacts so successfully used in the VH connector.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R75051
RoHS Compliant
