Applicable Wire
- AWG 24 to 20
- AWG 26 to 22
- AWG 28 to 22
| Article Number | SXA-001T-P0.6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |

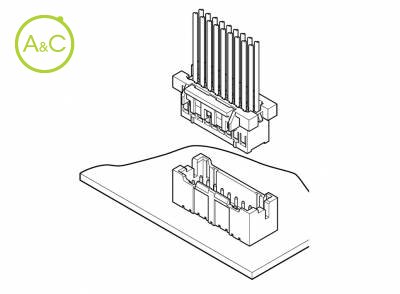

| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Applicable Wire Size | 0.08 to 0.33 (AWG #28 to #22) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Secure locking device |
Characteristics differ between variants of a connector
Header wafer is made of solder crack preventive material, glass-filled PA66 nylon.
Double-row construction.
Secure locking device prevents accidental diSConnection.
Locking device
The housing has a locking device which securely mates with the header, preventing accidental diSConnection resulting from external forces such as the routing of wires during assembly process or vibration.
Solder crack preventive material
Header wafer is made of glass-filled PA66 nylon thus effective against solder cracking.
Polarizing boss
Headers with polarizing bosses are also available.
Mis-insertion preventive design
Housing ribs prevent mis-insertion of the housing into the header.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R9851219
RoHS Compliant
