Receptacle Housing

XA CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	XARR-02V	XARR-02VF
Number Of Contacts	2	2
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-03V	XARR-03VF
Number Of Contacts	3	3
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-04V	XARR-04VF
Number Of Contacts	4	4
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-05V	XARR-05VF
Number Of Contacts	5	5
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-06V	XARR-06VF
Number Of Contacts	6	6
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-07V
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device
Extra Information	Without panel locks

Article Number	XARR-08V	XARR-08VF
Number Of Contacts	8	8
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-09V	XARR-09VF
Number Of Contacts	9	9
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-10V	XARR-10VF
Number Of Contacts	10	10
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-11V
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device
Extra Information	Without panel locks

Article Number	XARR-12V	XARR-12VF
Number Of Contacts	12	12
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Secure locking device	Secure locking device
Extra Information	Without panel locks	With panel locks

Article Number	XARR-13V
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device
Extra Information	Without panel locks

Article Number	XARR-14V
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device
Extra Information	Without panel locks

Article Number	XARR-15V
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device
Extra Information	Without panel locks

Characteristics differ between variants of a connector

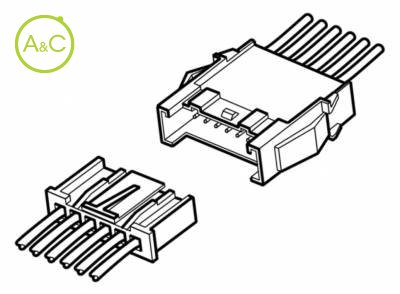

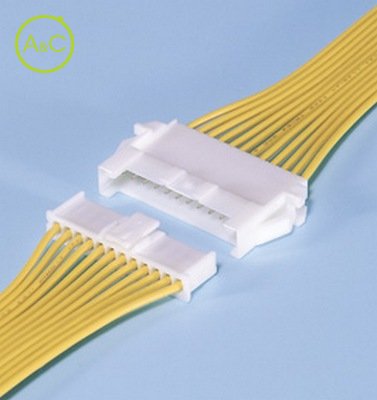

2.5mm (.098") pitch wire-to-wire connector that can mate with the socket of XA connector (board-to-wire type). Reliable secondary retainer is available. Panel mount is applicable. Possible to mate with the existing XA socket The wire-to-wire connection with the existing XA socket is possible. Inner type contact lance Inner type contact lance with stabilizer function provides stable contact retention force without deformation of the lance, and clear click feeling towards housing. Mountable on a variety of panels Possible to mount on panels of 0.5mm (.020") to 2.0mm (.079") thick. The design prevents from reverse mating and wire tangling toward panel section. Secondary retainer The secondary retainer enhance safety in case of partial insertion or accidental release of the contact. Secure lock construction Secure lock construction prevents accidental diSConnection because of routing of wires or of vibration, and also reverse and different circuit numbers mating. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
