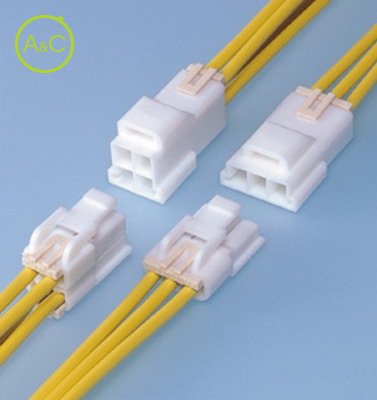

Receptacle Housing For Pin Contact

  • YLN CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 6
Article Number YLNR-02VF
Number Of Contacts 2
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 4.5mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors
Pitch / Style 4.50 mm
Rated Current (ac/dc) 10 A
Rated Voltage (ac/dc) 300 V
Remark* Secure locking device
Characteristics differ between variants of a connector

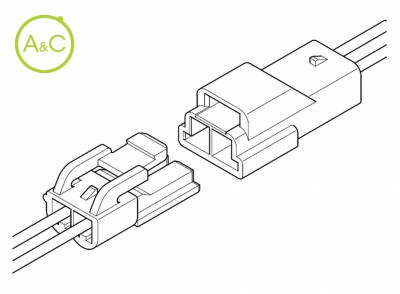

This connector is a development on JST's successful and hugely popular 4.5mm pitch YL wire-to-wire series connector, and represents JST's ability to develop new and innovative products in response to our customers exacting demands. Incorporating clever design aspects, this connector utilises the inertial forces associated when the two halves of the connector are mated, to ensure complete and assured assembly. Design to prevent incidental mating with the YL connector The YLN connector can be easily distinguished in its appearance from the YL connector because of the rib position and the locking part design. Inertia force mechanism This mechanism prevents incomplete mating and ensures complete mating by utilizing the inertia force generated by mating action of plug and receptacle. Interchangeability The contact and retainer of the existing YL connectors can be used. Finger friendly design Easy handling with rounded-shape housings. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
