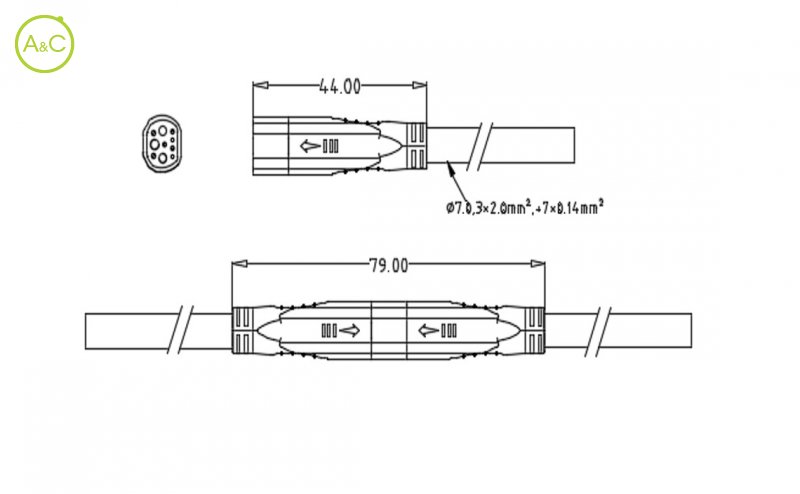

Male cable connector

Number Of Poles

  • 10 (3+7)
Article Number Z1012BGP 00 FB 1000
Color Black
Connector Diameter 11,48 x 9,55 mm
Wire Section 3 x 2,0 + 7 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IPX7
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 7 mm
Insulation Wire FEP
Remark Other cable length/type on request
Rated Current 20 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 79 mm
Material Jacket PVC
Characteristics differ between variants of a connector
