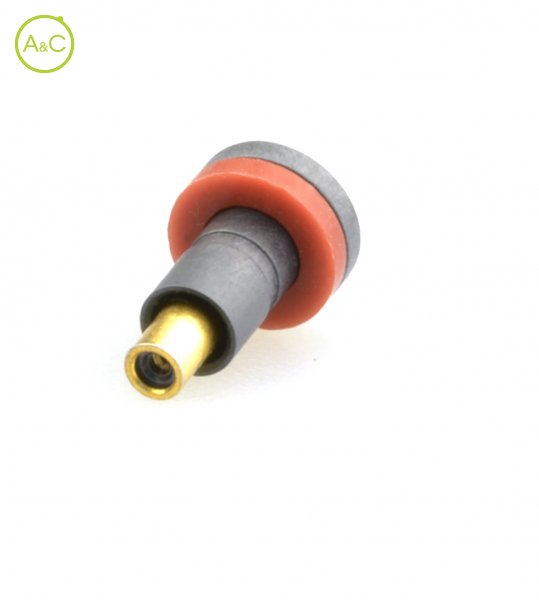

Micro A female panel mount connector

Number Of Poles

  • 2
Article Number Z205AM R 04 00 0000
Color Black
Connector Diameter 4.8 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Characteristics differ between variants of a connector
