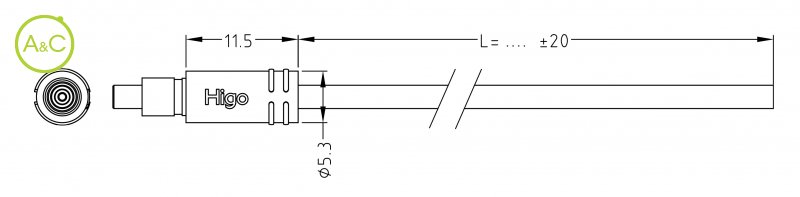

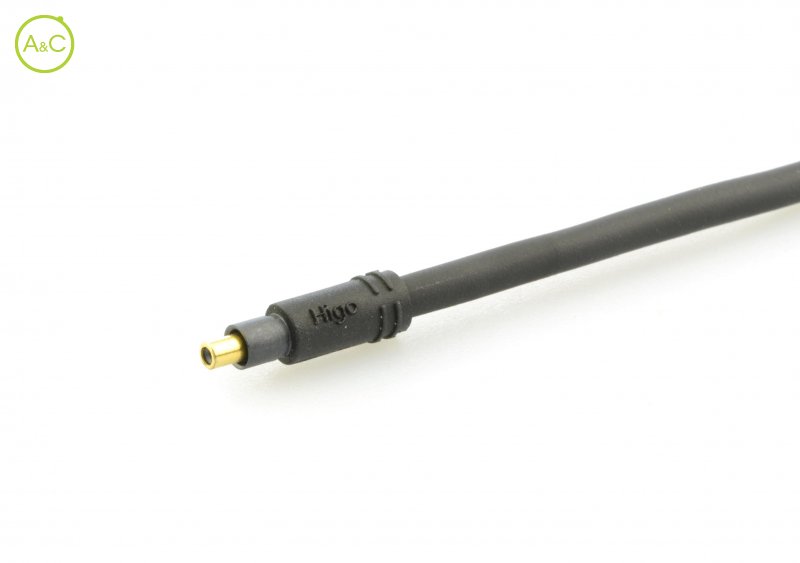

Micro B Female plug connector

Number Of Poles

  • 2
Article Number Z205BM P 00 DS 1000 Z205BM P 00 AW 1000 Z205BM P 00 S4 1000
Color Black Black Black
Connector Diameter 5.3 mm 5.3 mm 5.3 mm
Wire Section 2 x 0,14 mm² 2 x 0,14 mm² 2 x 0,34 mm²
Cable Length 1000 mm 1000 mm 1000 mm
Protection Degree IP67 IP67 IP67
Mating Cycles 200 times 200 times 200 times
Upper Temperature 80 °C 80 °C 80 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ ≤10 mΩ
Material Of Contact Phosphor Bronze Phosphor Bronze Phosphor Bronze
Cable Diameter 2.4 mm 2.4 mm 3.9 mm
Insulation Wire FEP FEP FEP
Remark Other cable length/type on request Other cable length/type on request Other cable length/type on request
Rated Current 2 A 2 A 2 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel Gold over Nickel
Fitting Length 29.5 mm 29.5 mm 29.5 mm
Material Jacket PVC TPU TPU
Characteristics differ between variants of a connector
