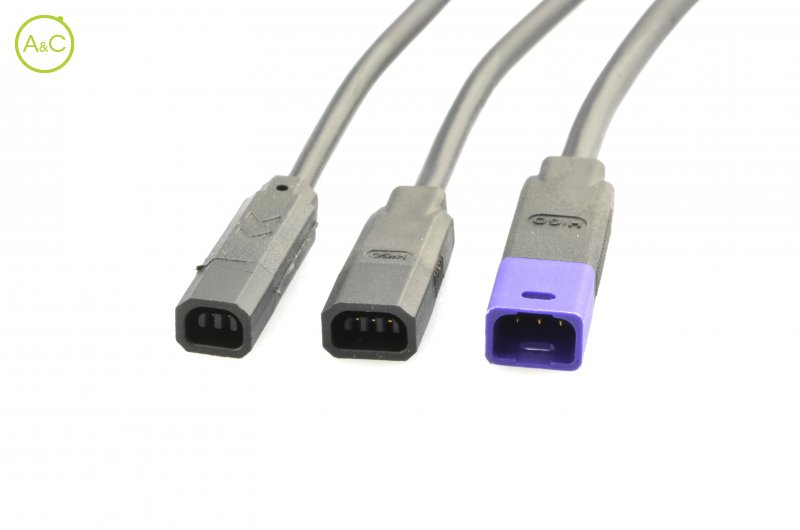

Micro T Male plug connector

Number Of Poles

  • 2
  • 3
  • 6
Article Number Z206TG P 00 DS 1000
Color Black

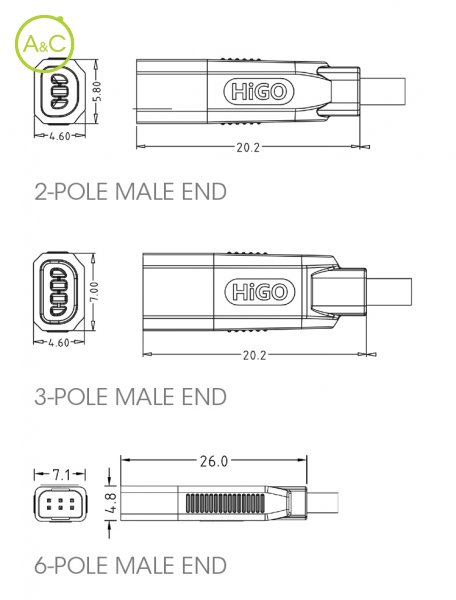

Connector Diameter 4,6 x 5,8 mm
Wire Section 2 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Cable Diameter 2.8 mm
Insulation Wire FEP
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 35 mm
Material Jacket PVC
Characteristics differ between variants of a connector
