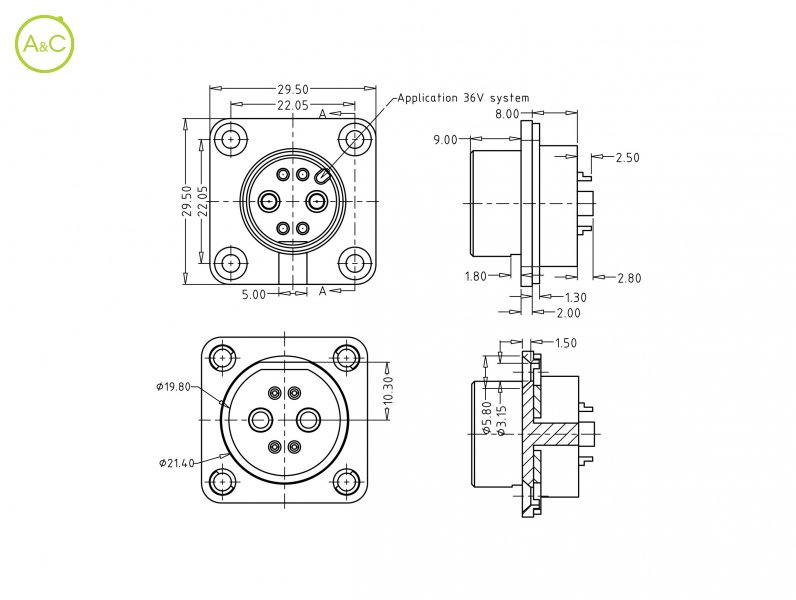

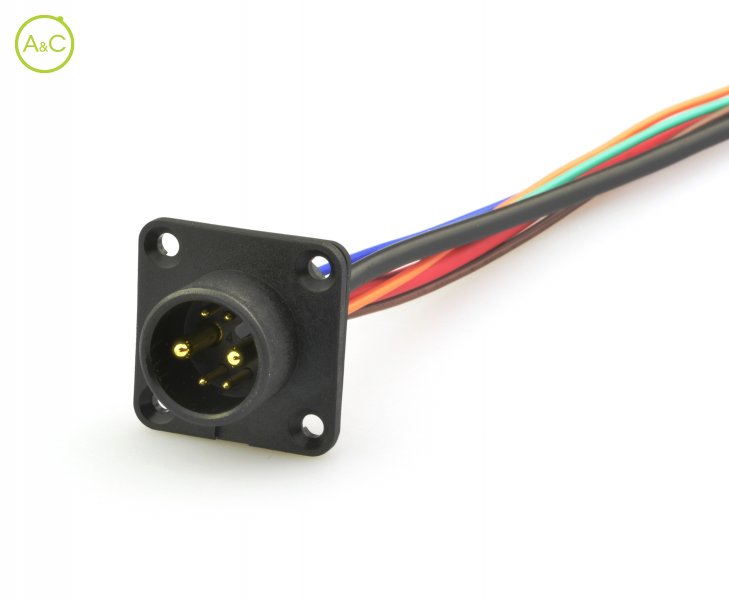

Battery male panel mount connector 36V code, no locking (push-on)

  • Only for use in 36V applications
Download product sheet

Number Of Poles

  • 6 (2+4)
Article Number Z624CG C 05 D1 0150 Z624CG C 05 D1 0300
Color Black Black
Connector Diameter 19 mm 19 mm
Wire Section 2 x 2,0 + 4 x 0,34 mm² 2 x 4,0 + 4 x 0,20 mm²
Cable Length Single wires 150 mm Single wires 300 mm
Protection Degree IP67 IP67
Mating Cycles 3000 times 3000 times
Upper Temperature 80 °C 80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ
Material Of Contact Brass Brass
Remark Other cable length/type on request Other cable length/type on request
Rated Current 40 / 5 A 40 / 5 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel
Characteristics differ between variants of a connector
