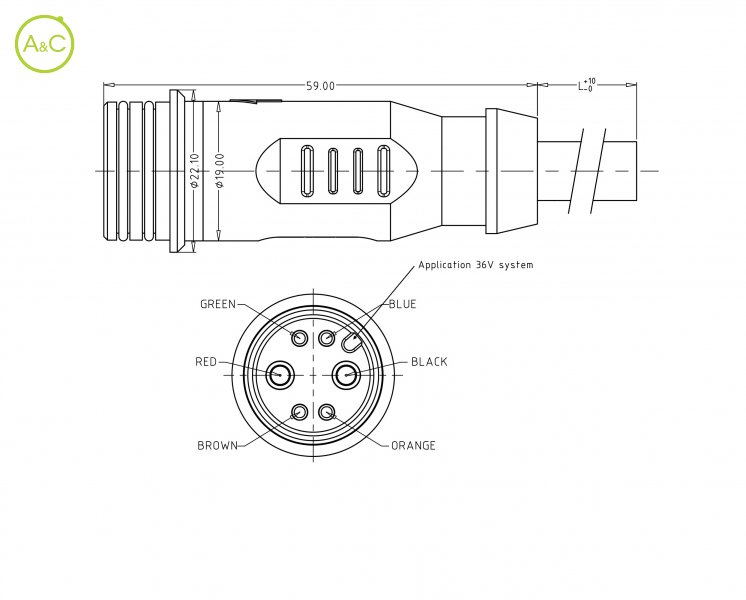

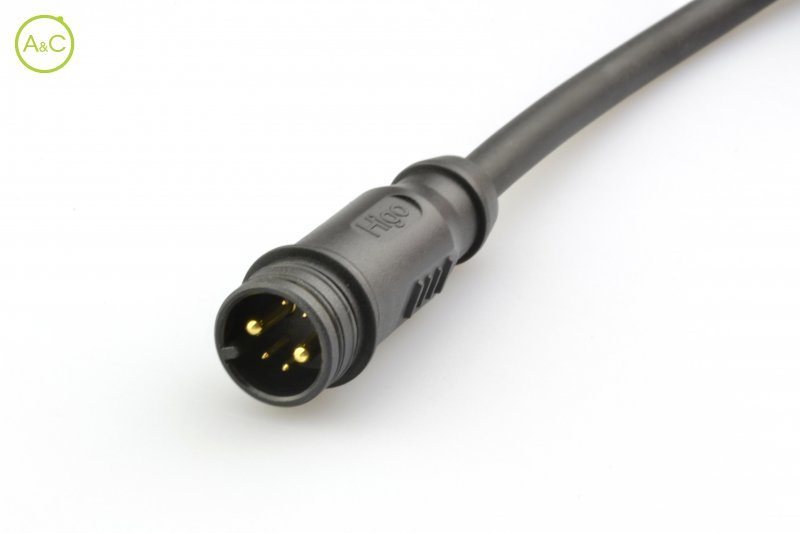

Battery Male plug connector 36V code, no locking (push-on)

  • Only for use in 36V applications
Download product sheet

Number Of Poles

  • 6 (2+4)
Article Number Z624CG P 00 B7 1000
Color Black
Connector Diameter 19 mm
Wire Section 2 x 2,0 + 4 x 0,34 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 40 / 5 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Material Jacket TPU
Characteristics differ between variants of a connector
