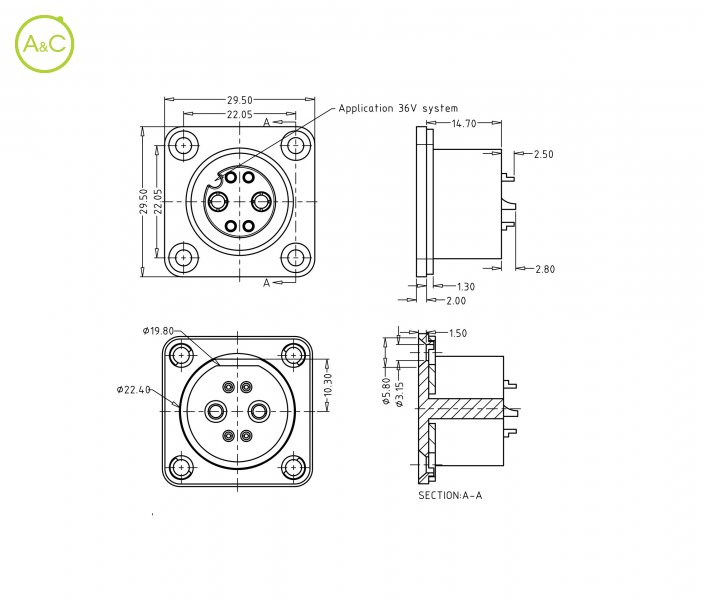

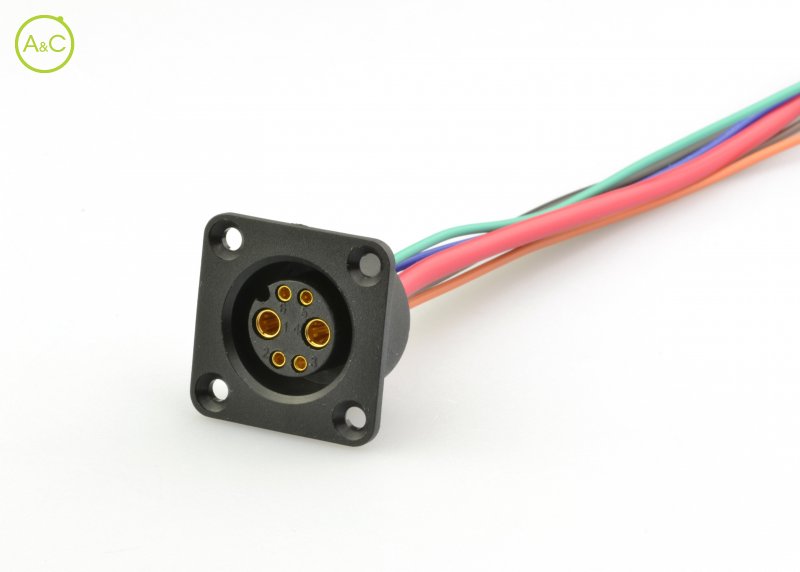

Battery female panel mount connector 36V code, no locking (push-on)
Do you have any questions about this product?
More info on this brand:
Higo
Higo
Number Of Poles
- 6 (2+4)
| Article Number | Z624CM C 05 D1 0150 | Z624CM C 03 DR 0300 |
| Color | Black | Black |
| Connector Diameter | 19 mm | 19 mm |
| Wire Section | 2 x 2,0 + 4 x 0,34 mm² | 2 x 4,0 + 4 x 0,20 mm² |
| Cable Length | Single wires 150 mm | Single wires 300 mm |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | 3000 times | 3000 times |
| Upper Temperature | 80 °C | 80 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ | ≤10 mΩ |
| Material Of Contact | Phosphor bronze | Phosphor bronze |
| Remark | Other cable length/type on request | Other cable length/type on request |
| Rated Current | 40 / 5 A | 40 / 5 A |
| Max. Insulation Resistance | ≥20 MΩ | ≥20 MΩ |
| Contact Plating | Gold over Nickel | Gold over Nickel |
Characteristics differ between variants of a connector
