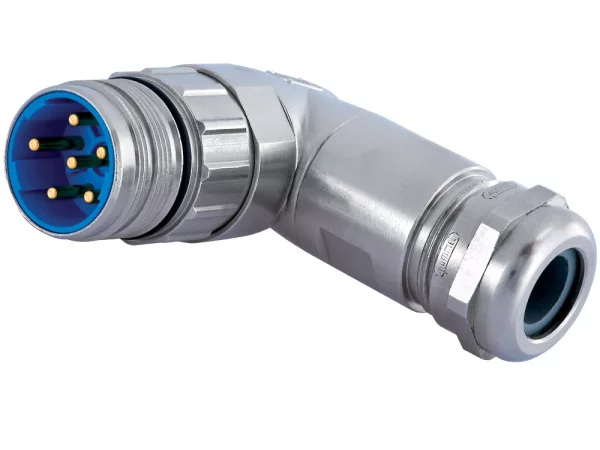

Right Angle Connector, Male Thread
Rotating
7.580.500.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Power |
|---|---|
| Gender of required insert | Male/Female |
| Connector diameter | 27.2 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Cable diameter | 7-12 mm |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.580.600.000 | 10-14 mm | 10-14 mm |
