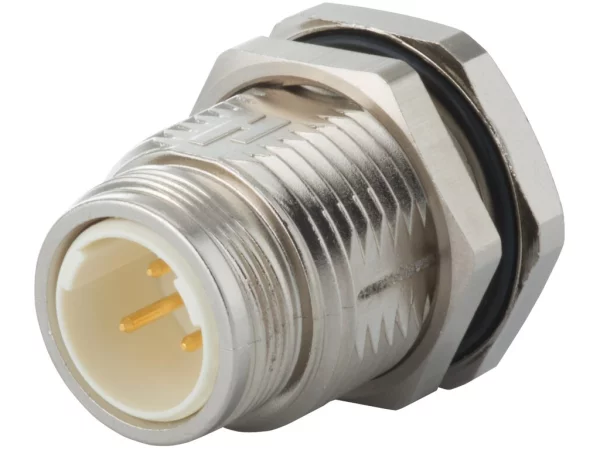

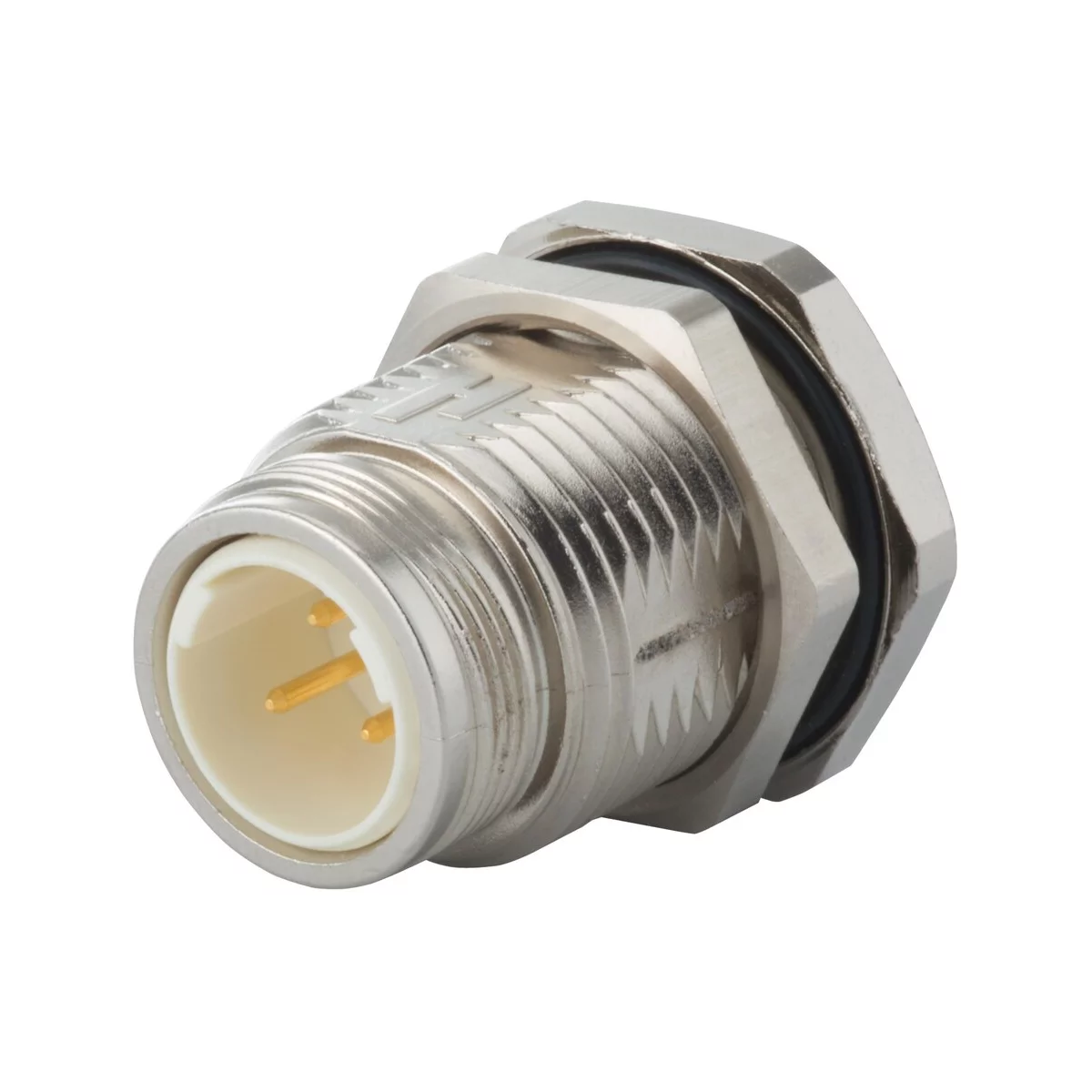

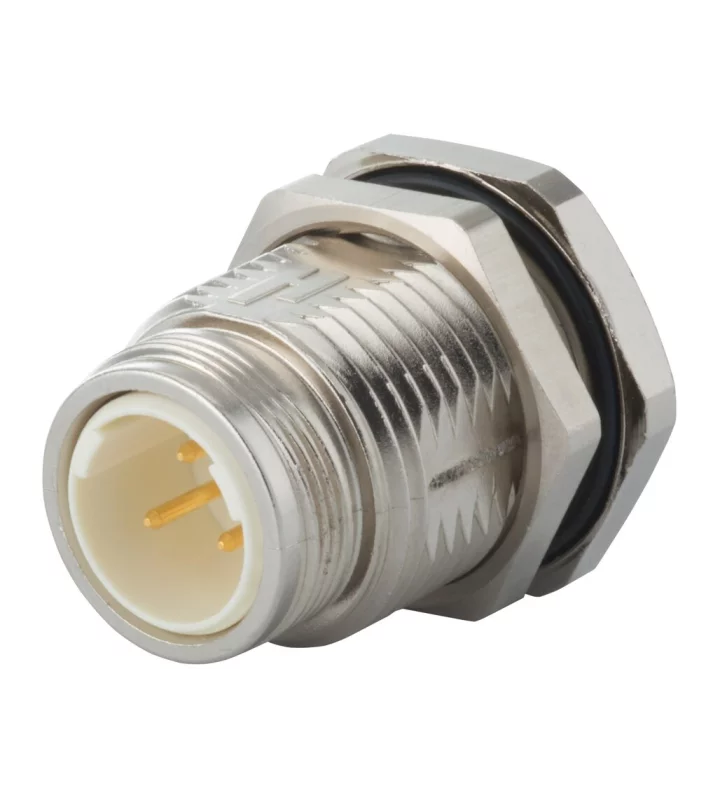

Panel Connector Male Thread
Rear mounting
single hole mounted
7.850.000.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M16 |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw/Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Remark 1 | Including jam nut |
Material
| Housing material | Copper-Zinc alloy, Die cast |
|---|---|
| Housing plating | Nickel plated |
