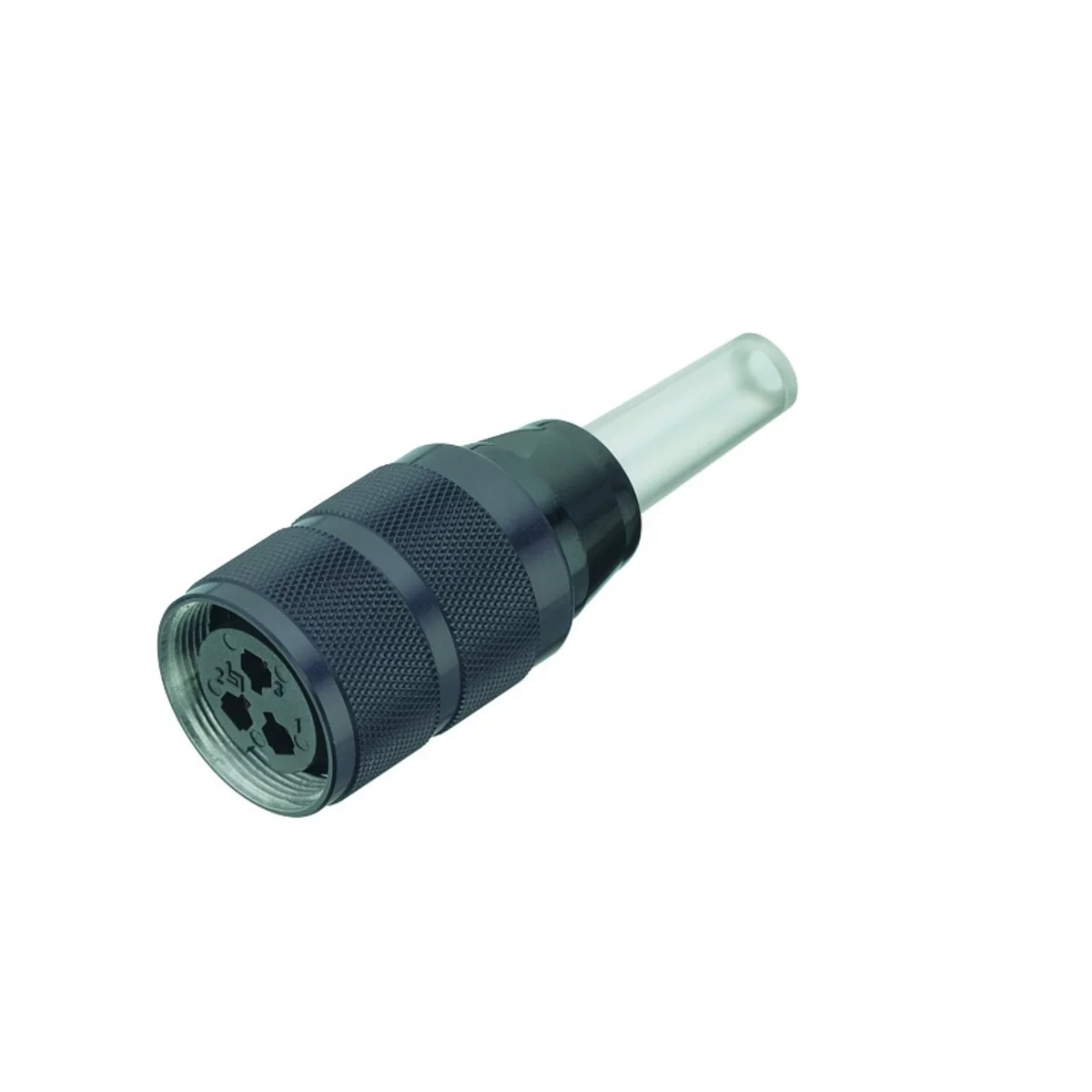

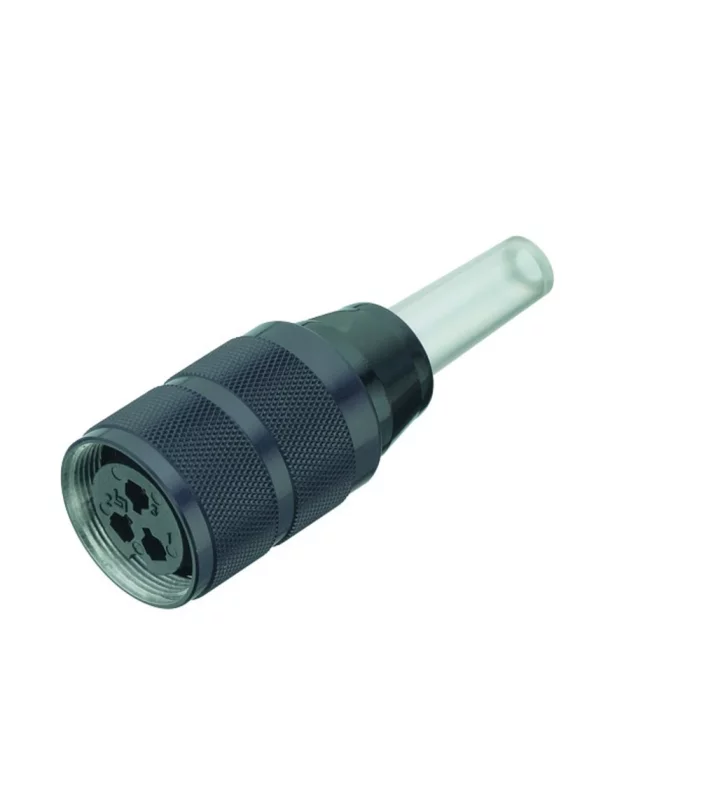

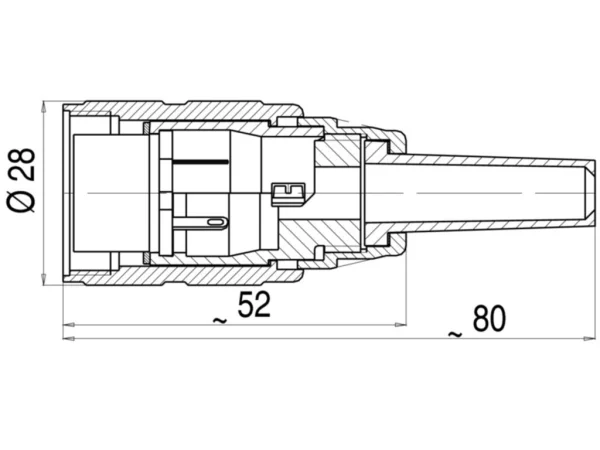

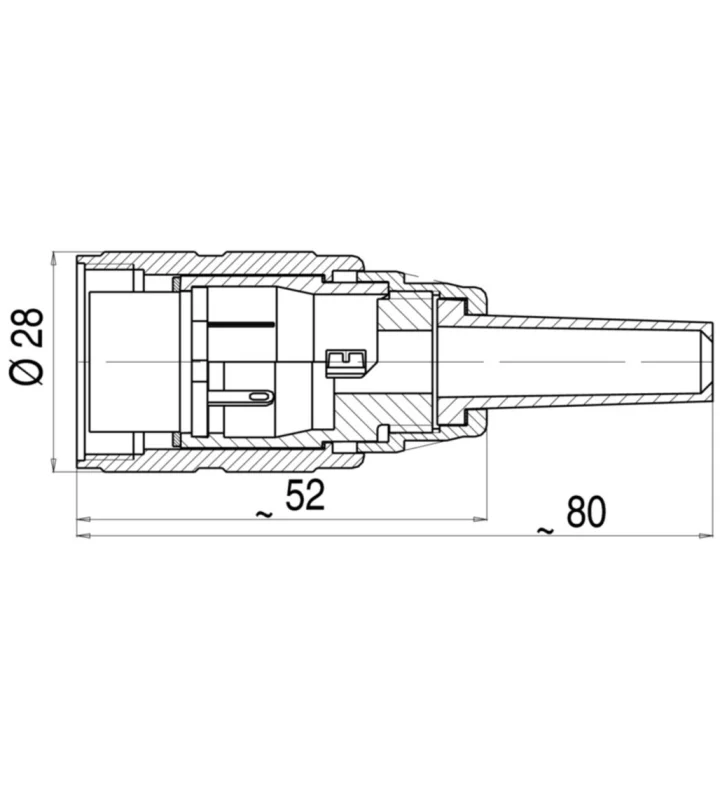

Female cable connector
09 0034 00 03
Specificaties
General Characteristics
| Screw size | M25 |
|---|---|
| Series | Power |
| Subseries | 691 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M25) |
| Mating cycles | >500 |
| Connector Diameter | 28 mm |
| Cable outlet | 5-8 mm |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | GD-Al (anodized) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Material of insert | Max. contact resistance | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 09 0038 00 05 | >5 - ≤10 A | 5 | 250 V | 2500 V | PBT (UL 94 V-0) | 5 mΩ | >200 - ≤400 V | 1.5 mm² |
| 09 0042 00 07 | ≤5 A | 7 | 250 V | 2500 V | PET (UL 94 V-0) | 8 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0446 00 12 | ≤5 A | 12 | 125 V | 1500 V | PET (UL 94 V-0) | 8 mΩ | ≤200 V | 0.75 mm² |
