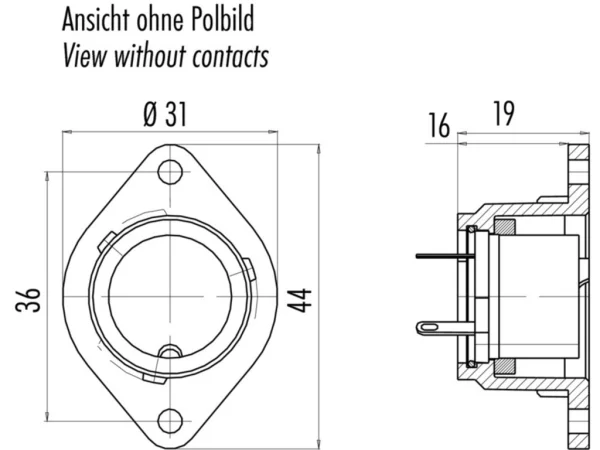

Female panel mount connector
09 0062 00 05
Specificaties
General Characteristics
| Series | Power |
|---|---|
| Subseries | 690 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Bayonet |
| Mating cycles | >500 |
| Connector Diameter | 29 mm |
| Wire-section | 2.5 mm² |
Electrical parameters
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|
| 09 0058 00 03 | >5 - ≤10 A | 3 | 250 V | 2500 V | 5 mΩ | >200 - ≤400 V | 2.5 mm² |
| 09 0066 00 07 | ≤5 A | 7 | 250 V | 2500 V | 8 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0470 00 12 | ≤5 A | 12 | 125 V | 1500 V | 8 mΩ | ≤200 V | 0.75 mm² |
