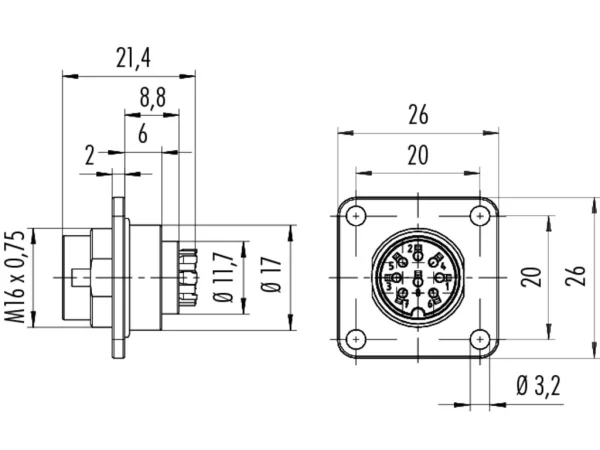

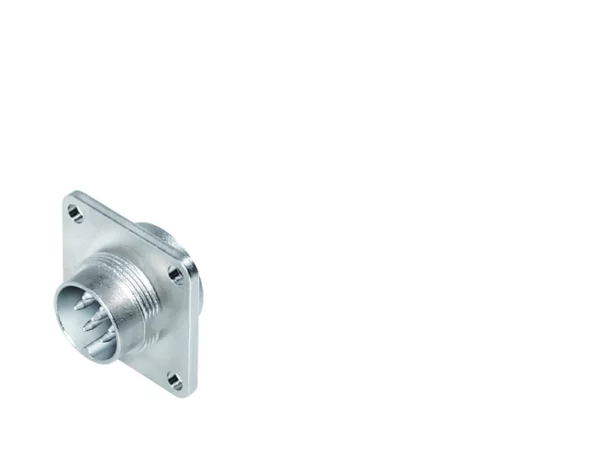

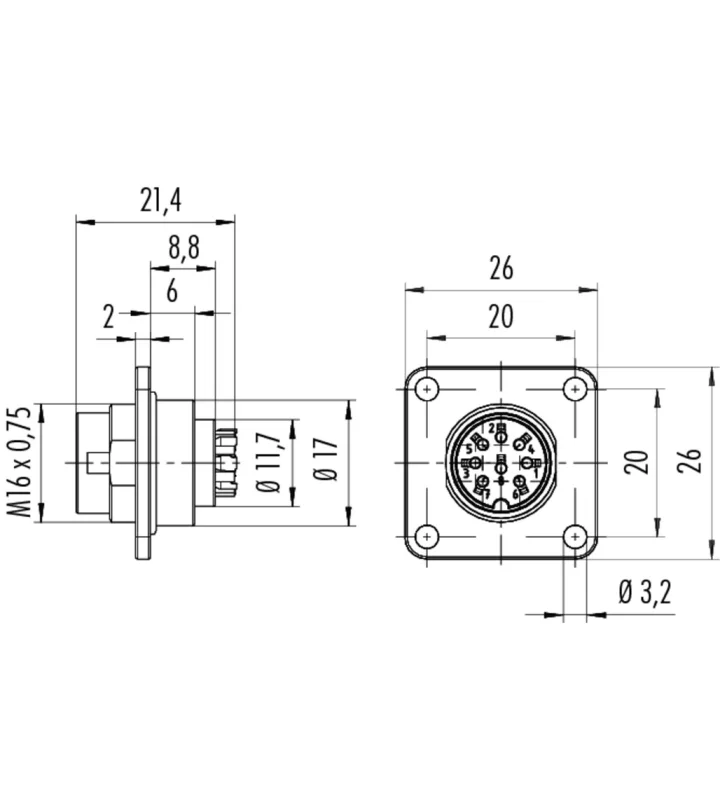

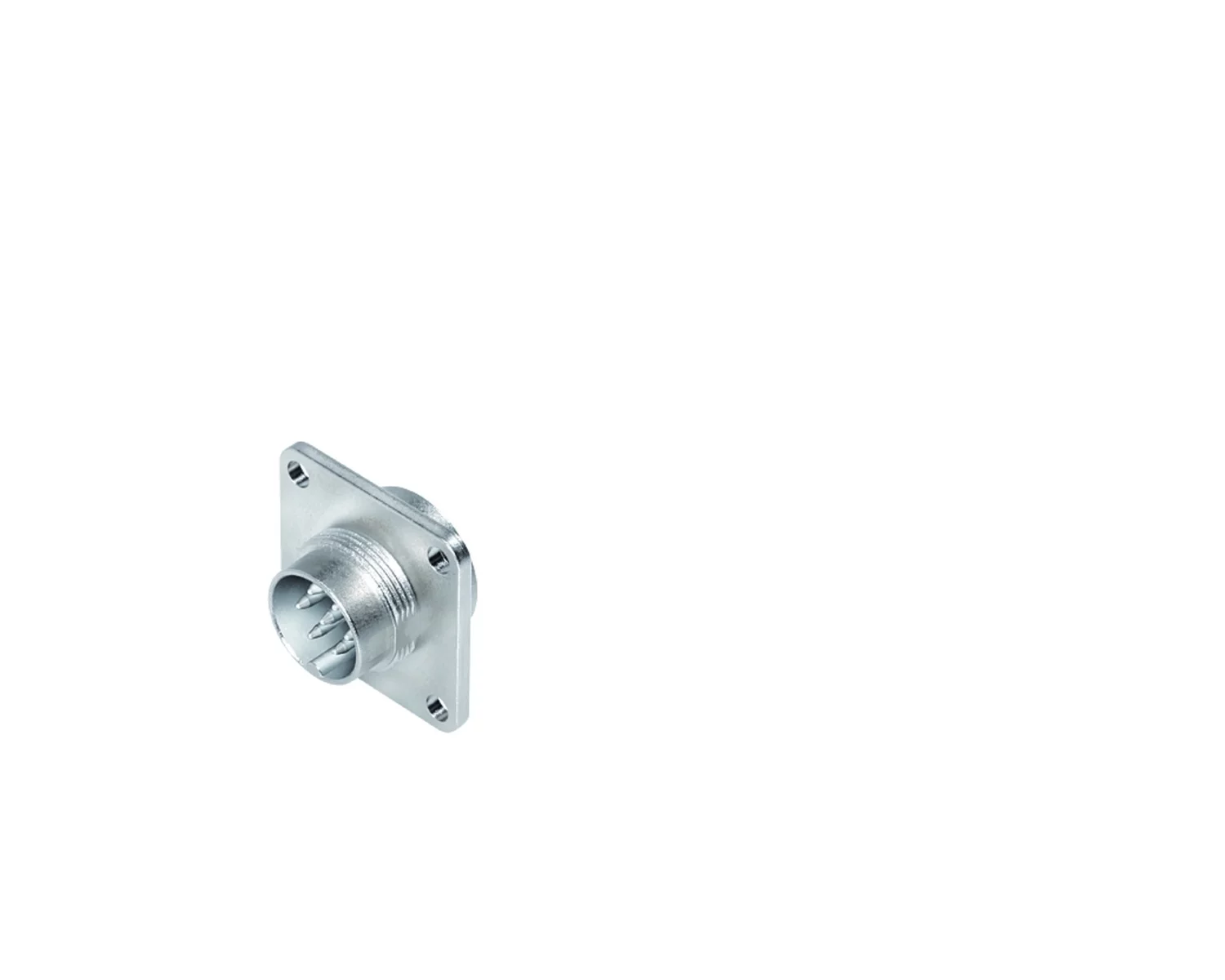

Male panel mount connector
Rectangular flange
Crimp
09 0111 370 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Crimp |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 17 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 6 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Material group | Nominal voltage | Contact terminal | Connector Diameter (mm) | Upper temperature | Lower temperature | Connector Diameter |
|---|---|---|---|---|---|---|---|---|---|
| 09 0111 320 04 | ≤5 A | 4 | II | 300 V | Single wires | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0115 370 05 | >5 - ≤10 A | 5 | III | 250 V | Crimp | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0115 320 05 | ≤5 A | 5 | II | 300 V | Single wires | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0123 370 06 | ≤5 A | 6 | III | 250 V | Crimp | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0123 320 06 | ≤5 A | 6 | II | 300 V | Single wires | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0123 702 06 | ≤5 A | 6 | II | 300 V | Strands | 20 mm | +85 °C | -30 °C | 20 mm |
