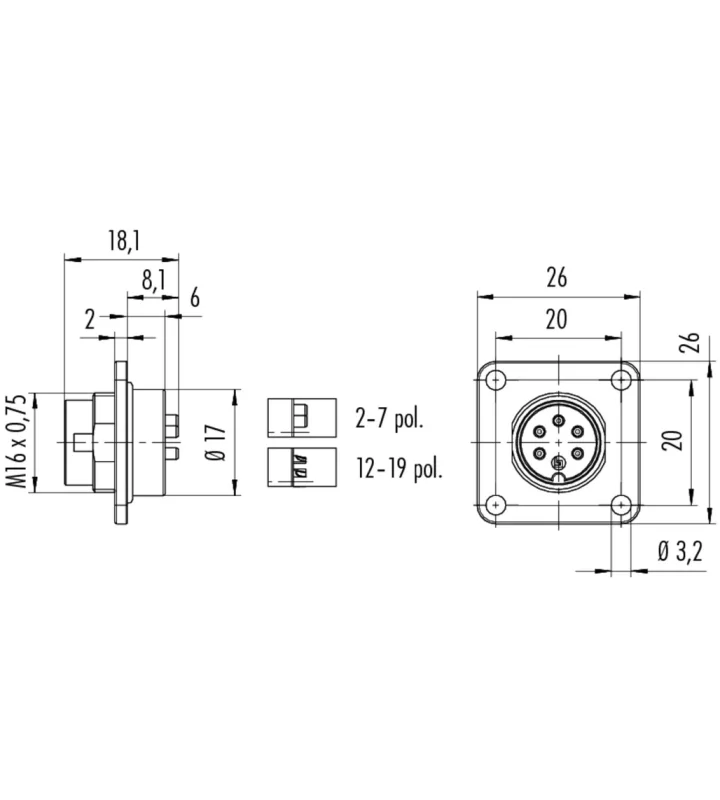

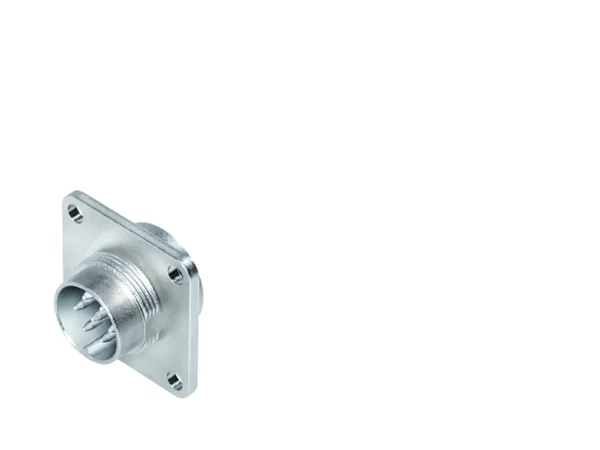

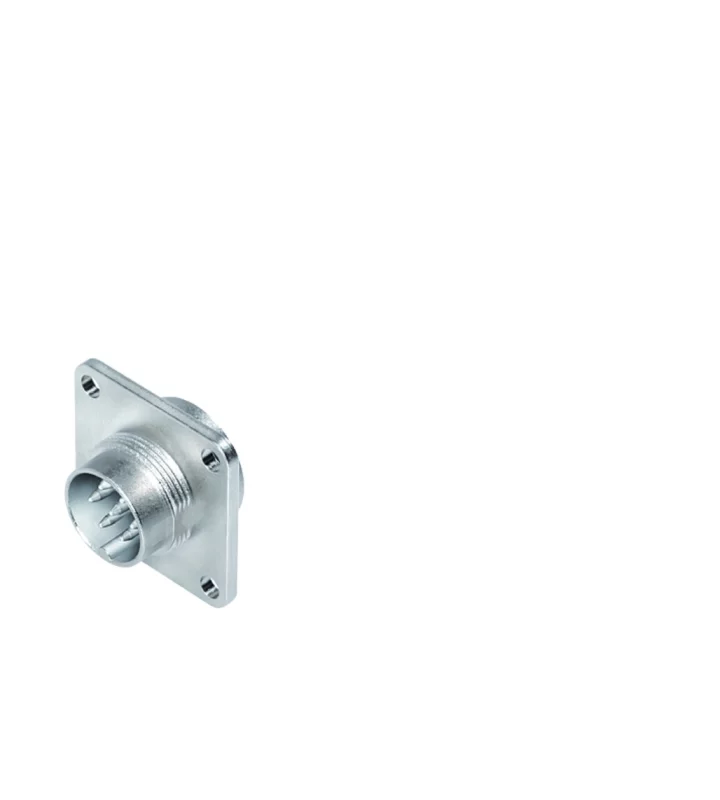

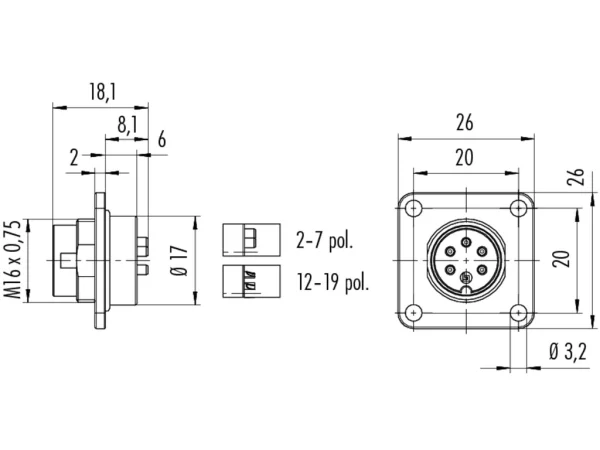

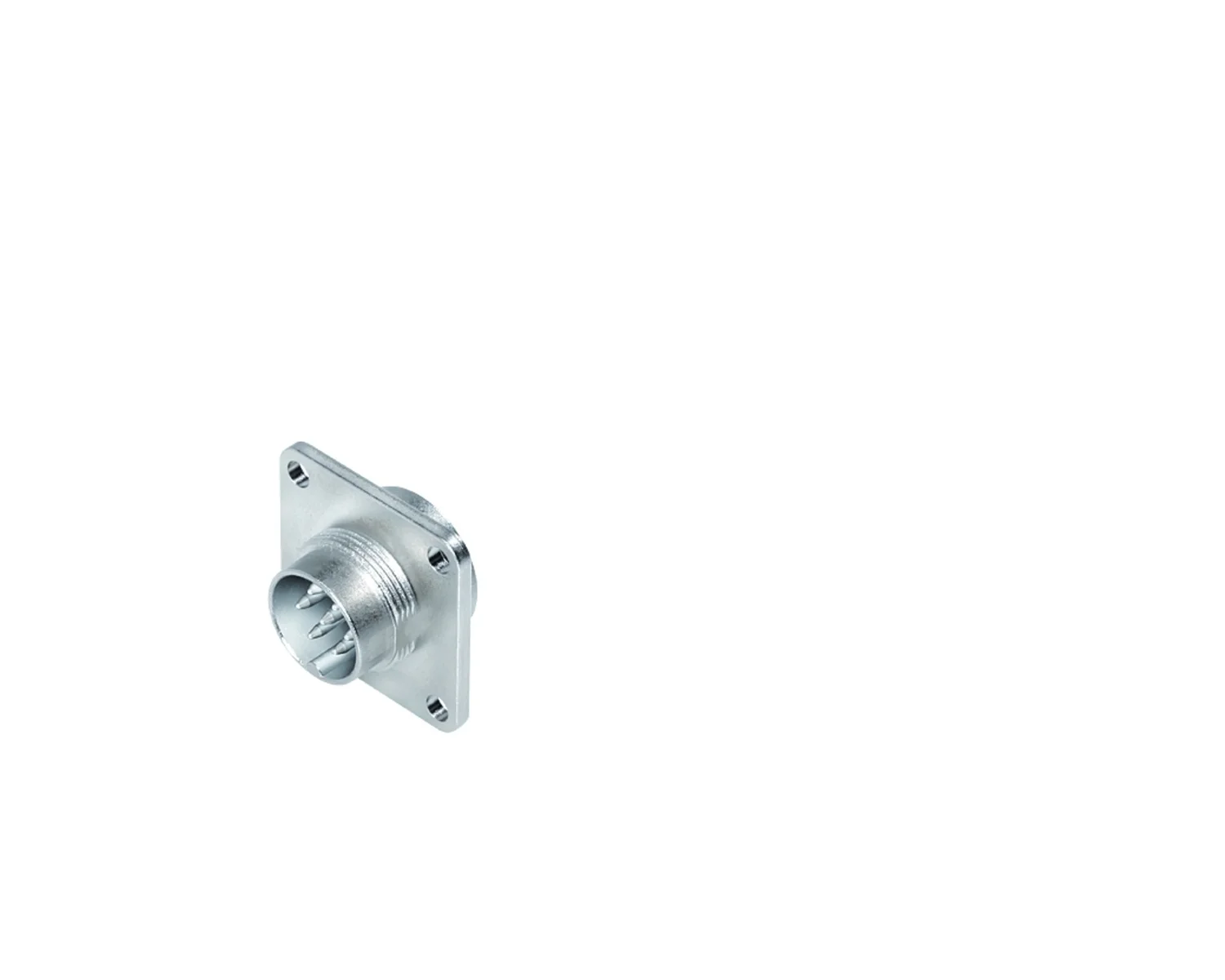

Male panel mount connector
Rectangular flange
Solder
09 0115 300 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Solder |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 17 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 6 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|
| 09 0103 300 02 | >5 - ≤10 A | 2 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0107 300 03 | >5 - ≤10 A | 3 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0111 300 04 | >5 - ≤10 A | 4 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0123 300 06 | ≤5 A | 6 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0127 300 07 | ≤5 A | 7 | 60 V | 500 V | 5 mΩ | ≤200 V | 0.75 mm² |
| 09 0173 300 08 | ≤5 A | 8 | 60 V | 500 V | 5 mΩ | ≤200 V | 0.75 mm² |
| 09 0131 300 12 | ≤5 A | 12 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0453 300 14 | ≤5 A | 14 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0507 300 16 | ≤5 A | 16 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0463 300 19 | ≤5 A | 19 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
