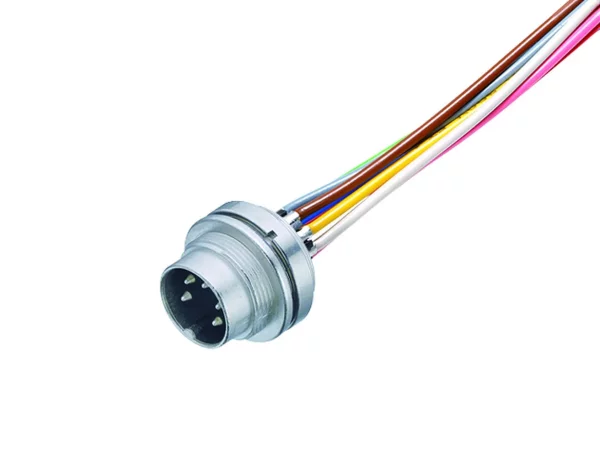

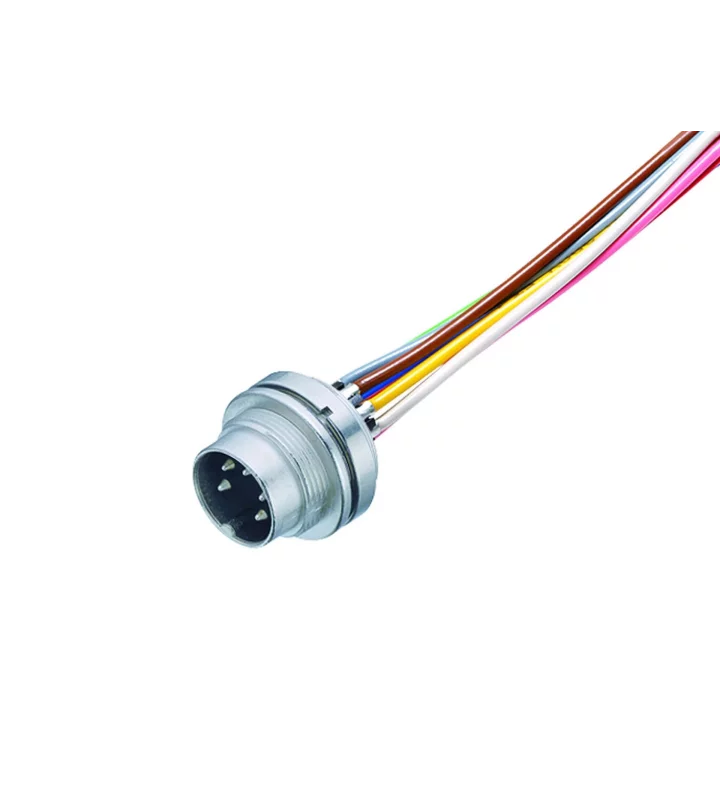

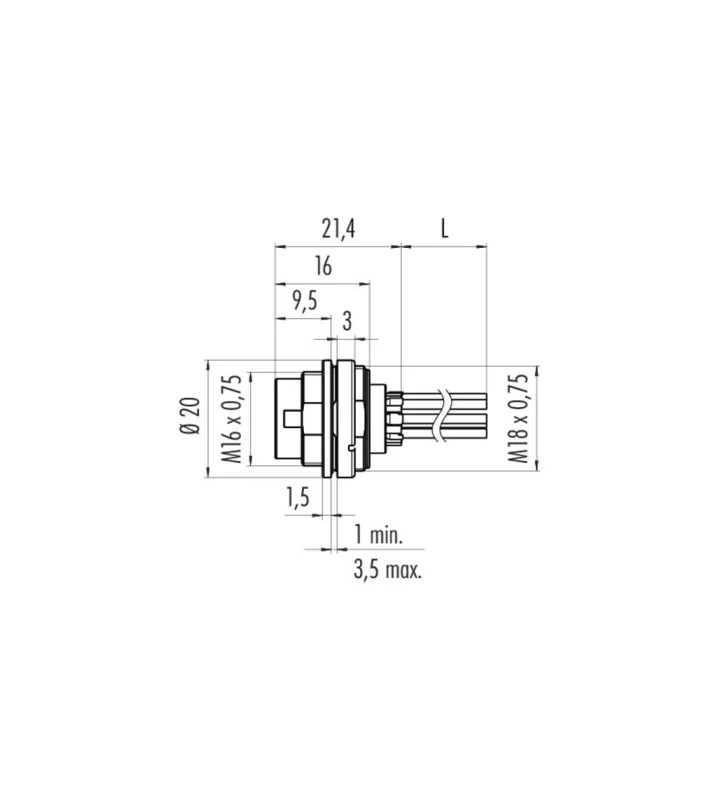

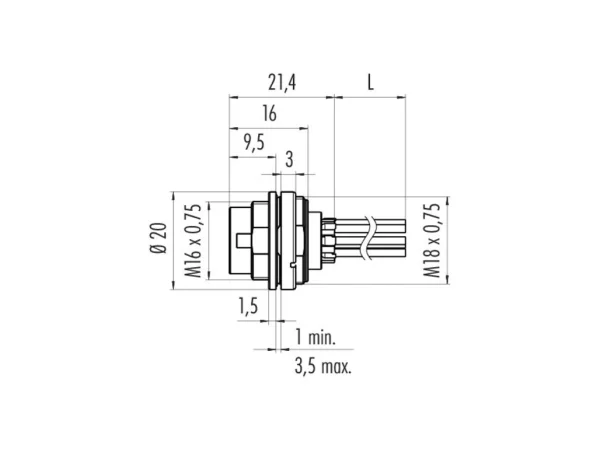

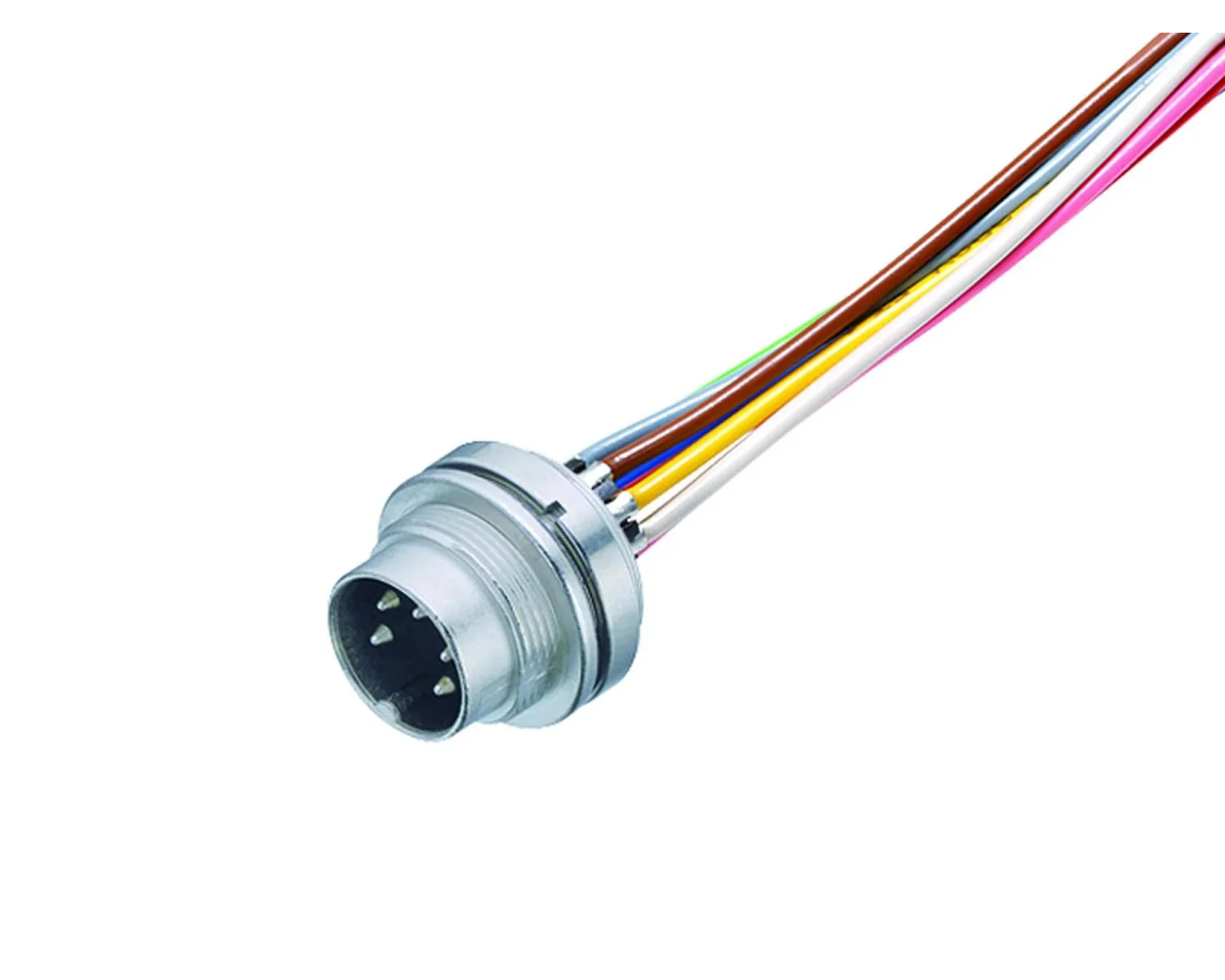

Male panel mount connector
With single wires
UL-approval
09 0123 702 06
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Male |
| Number of contacts | 6 |
| Contact terminal | Strands |
| Upper temperature | +85 °C |
| Lower temperature | -30 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Material group | Nominal voltage | Contact terminal | Connector Diameter (mm) | Upper temperature | Lower temperature | Connector Diameter |
|---|---|---|---|---|---|---|---|---|---|
| 09 0111 370 04 | >5 - ≤10 A | 4 | III | 250 V | Crimp | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0111 320 04 | ≤5 A | 4 | II | 300 V | Single wires | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0115 370 05 | >5 - ≤10 A | 5 | III | 250 V | Crimp | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0115 320 05 | ≤5 A | 5 | II | 300 V | Single wires | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0123 370 06 | ≤5 A | 6 | III | 250 V | Crimp | 17 mm | +95 °C | -40 °C | 17 mm |
| 09 0123 320 06 | ≤5 A | 6 | II | 300 V | Single wires | 17 mm | +95 °C | -40 °C | 17 mm |
