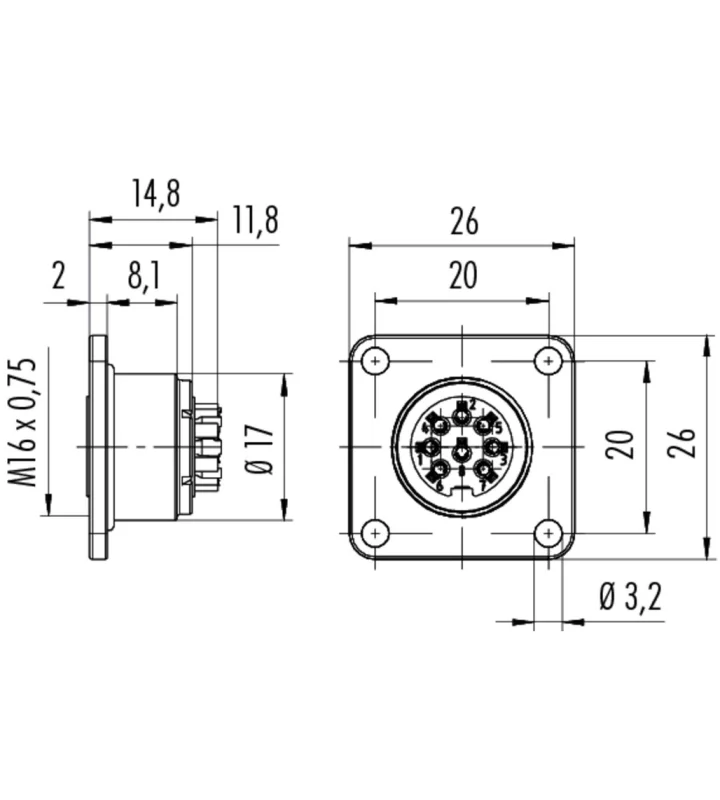

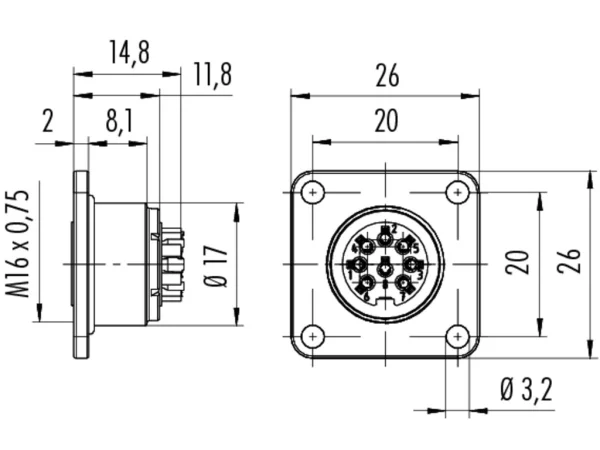

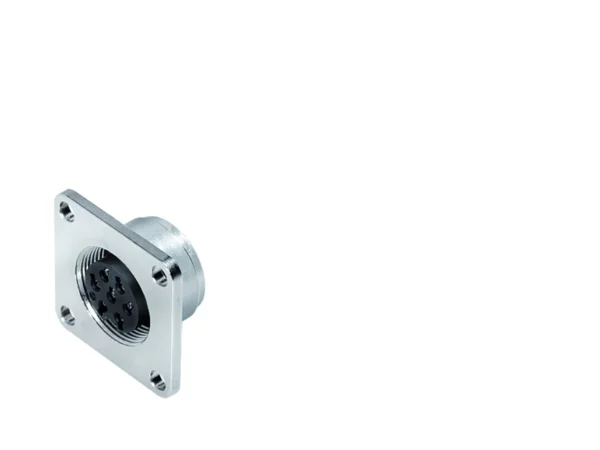

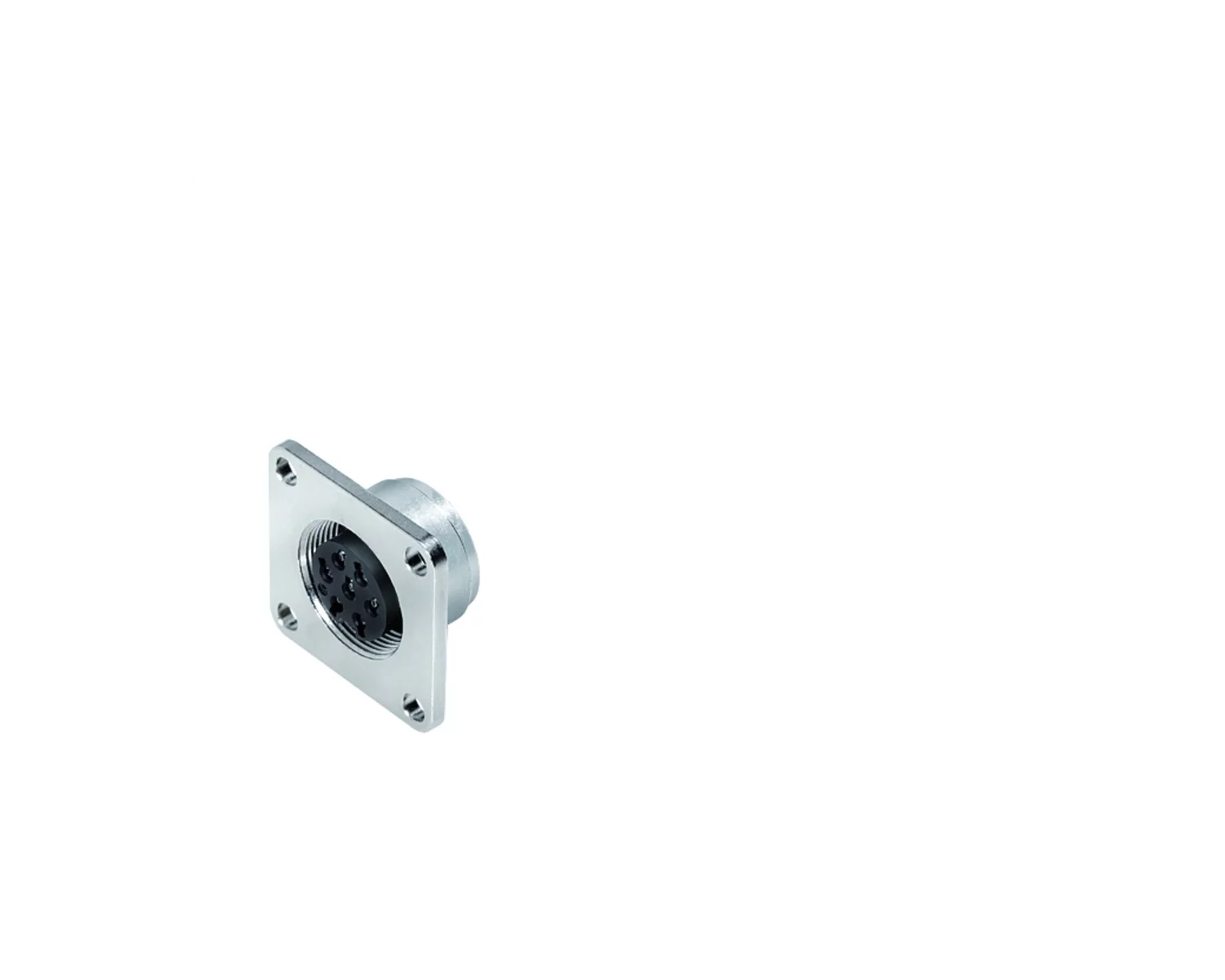

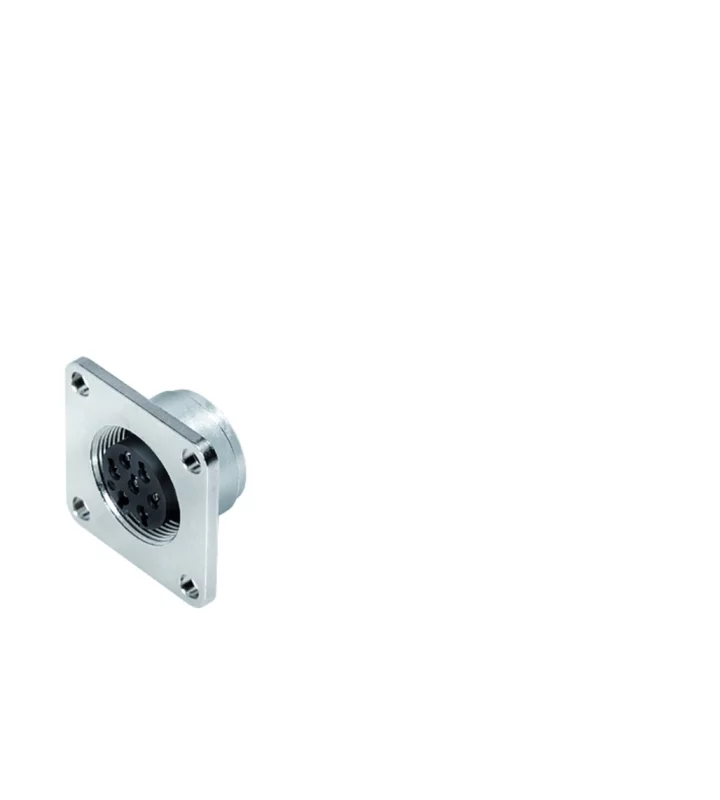

Female panel mount connector
Rectangular flange
Crimp
09 0124 370 06
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Female |
| Number of contacts | 6 |
| Contact terminal | Crimp |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 17 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 09 0112 370 04 | >5 - ≤10 A | 4 | 250 V | 1500 V | >200 - ≤400 V |
| 09 0116 370 05 | >5 - ≤10 A | 5 | 250 V | 1500 V | >200 - ≤400 V |
| 09 0128 370 07 | ≤5 A | 7 | 60 V | 500 V | ≤200 V |
| 09 0174 370 08 | ≤5 A | 8 | 60 V | 500 V | ≤200 V |
