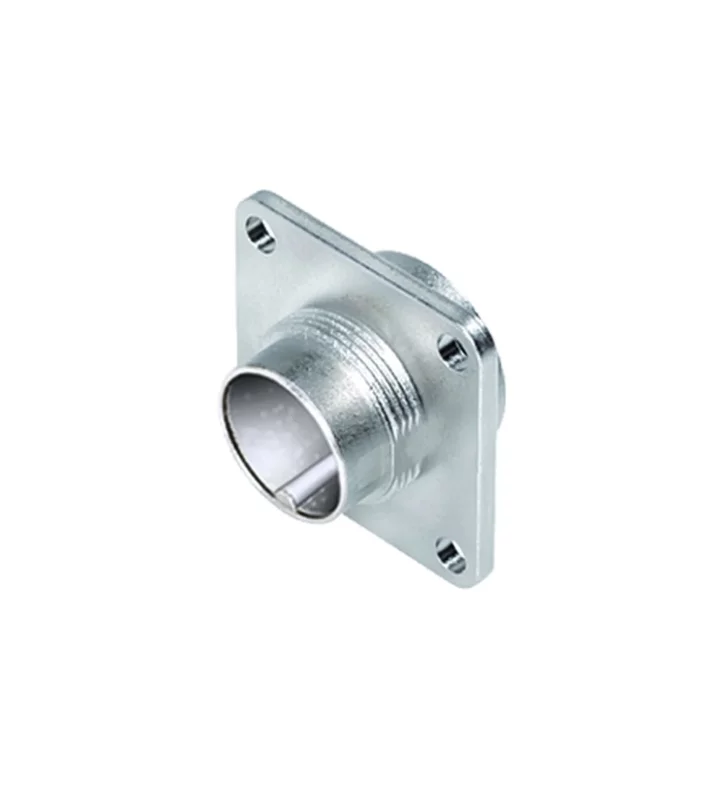

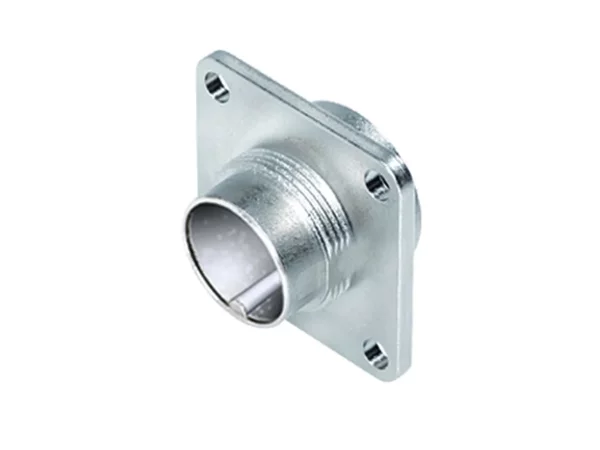

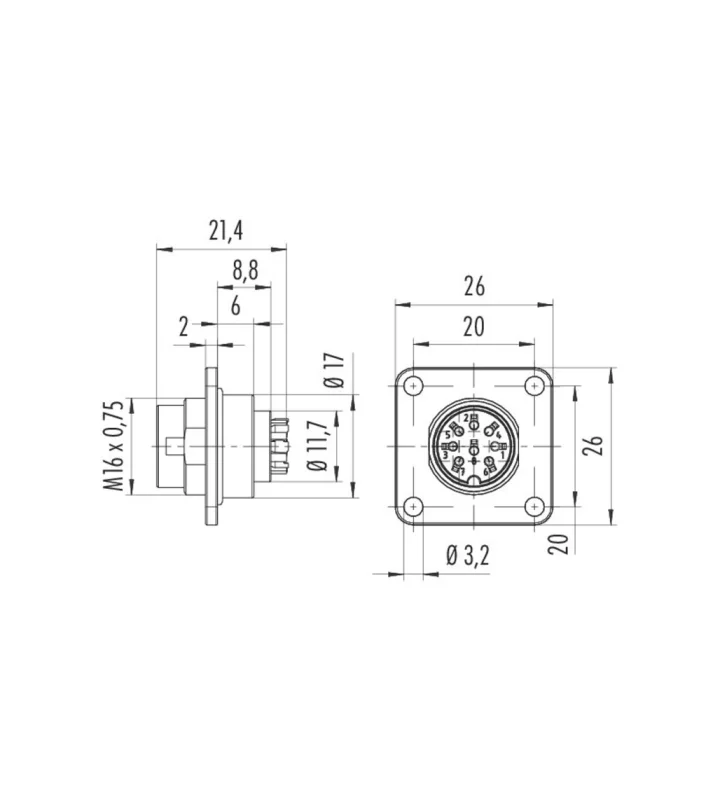

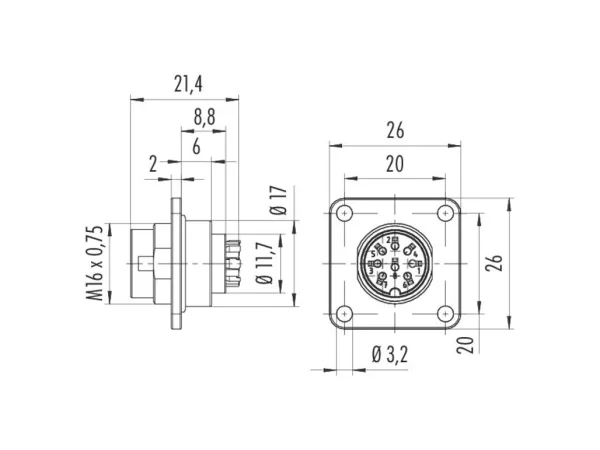

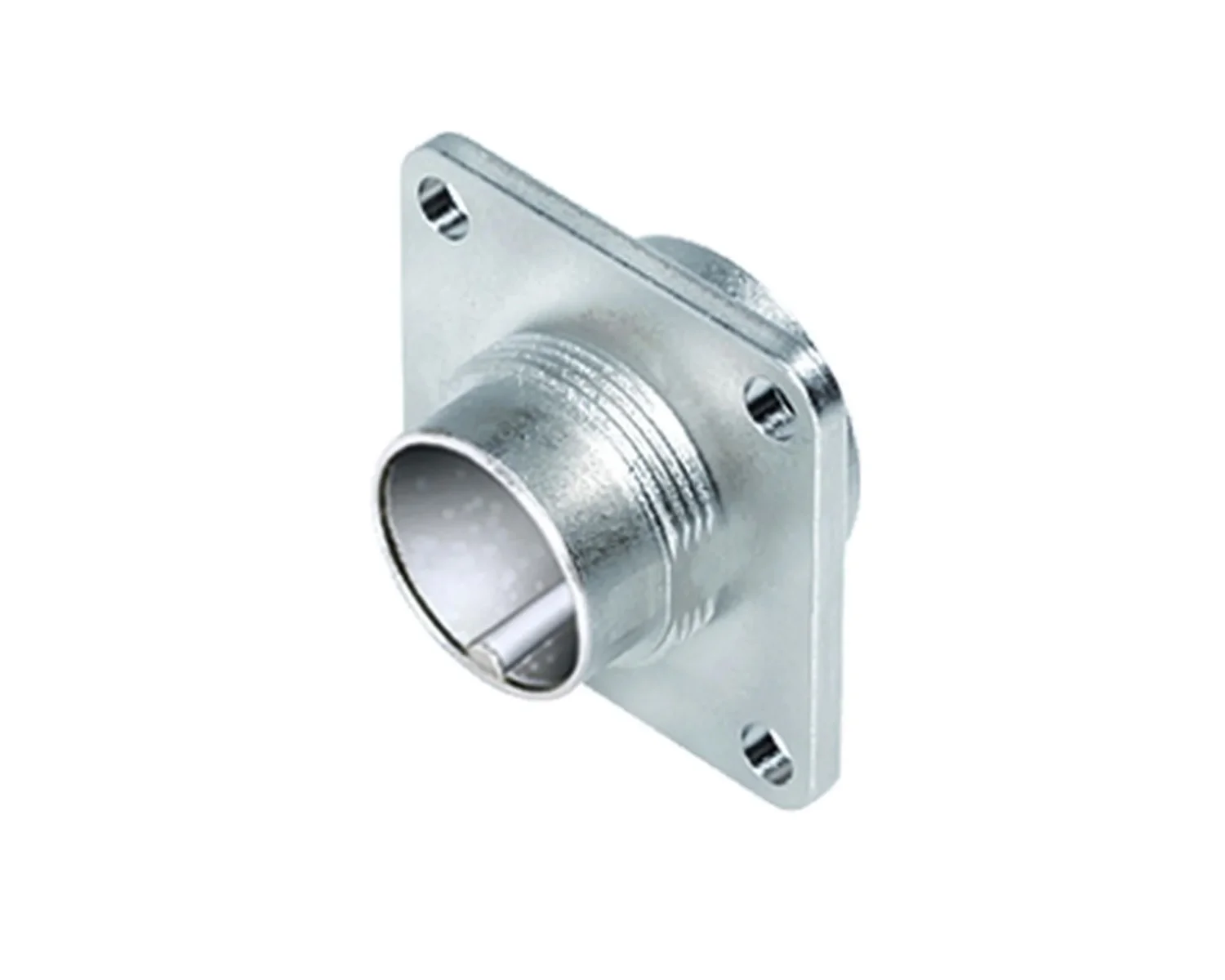

Male panel mount connector
Rectangular flange
Crimp
09 0127 370 07
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Male |
| Number of contacts | 7 |
| Contact terminal | Crimp |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 17 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Number of contacts | Material group | Nominal voltage | Contact terminal | Impuls voltage | Connector Diameter (mm) | Upper temperature | Lower temperature | Nominal Voltage | Connector Diameter |
|---|---|---|---|---|---|---|---|---|---|---|
| 09 0123 782 06 | 6 | II | 300 V | Strands | 1500 V | 20 mm | +85 °C | -30 °C | >200 - ≤400 V | 20 mm |
| 09 0127 320 07 | 7 | II | 100 V | Single wires | 1200 V | 17 mm | +95 °C | -40 °C | ≤200 V | 17 mm |
| 09 0127 702 07 | 7 | II | 100 V | Strands | 1200 V | 20 mm | +85 °C | -30 °C | ≤200 V | 20 mm |
| 09 0127 782 07 | 7 | II | 100 V | Strands | 1200 V | 20 mm | +85 °C | -30 °C | ≤200 V | 20 mm |
| 09 0173 370 08 | 8 | III | 60 V | Crimp | 500 V | 17 mm | +95 °C | -40 °C | ≤200 V | 17 mm |
| 09 0173 320 08 | 8 | II | 100 V | Single wires | 1200 V | 17 mm | +95 °C | -40 °C | ≤200 V | 17 mm |
| 09 0173 702 08 | 8 | II | 100 V | Strands | 1200 V | 20 mm | +85 °C | -30 °C | ≤200 V | 20 mm |
