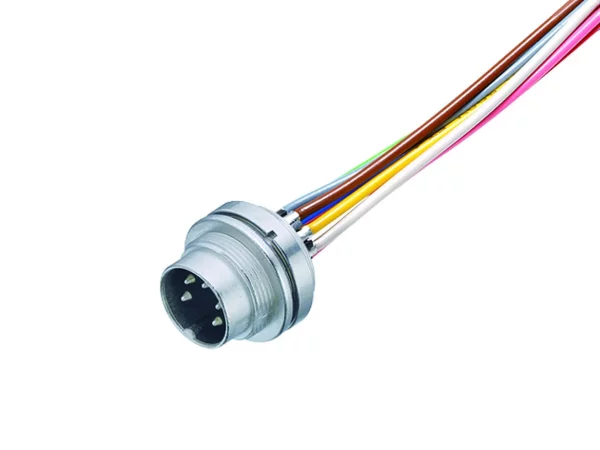

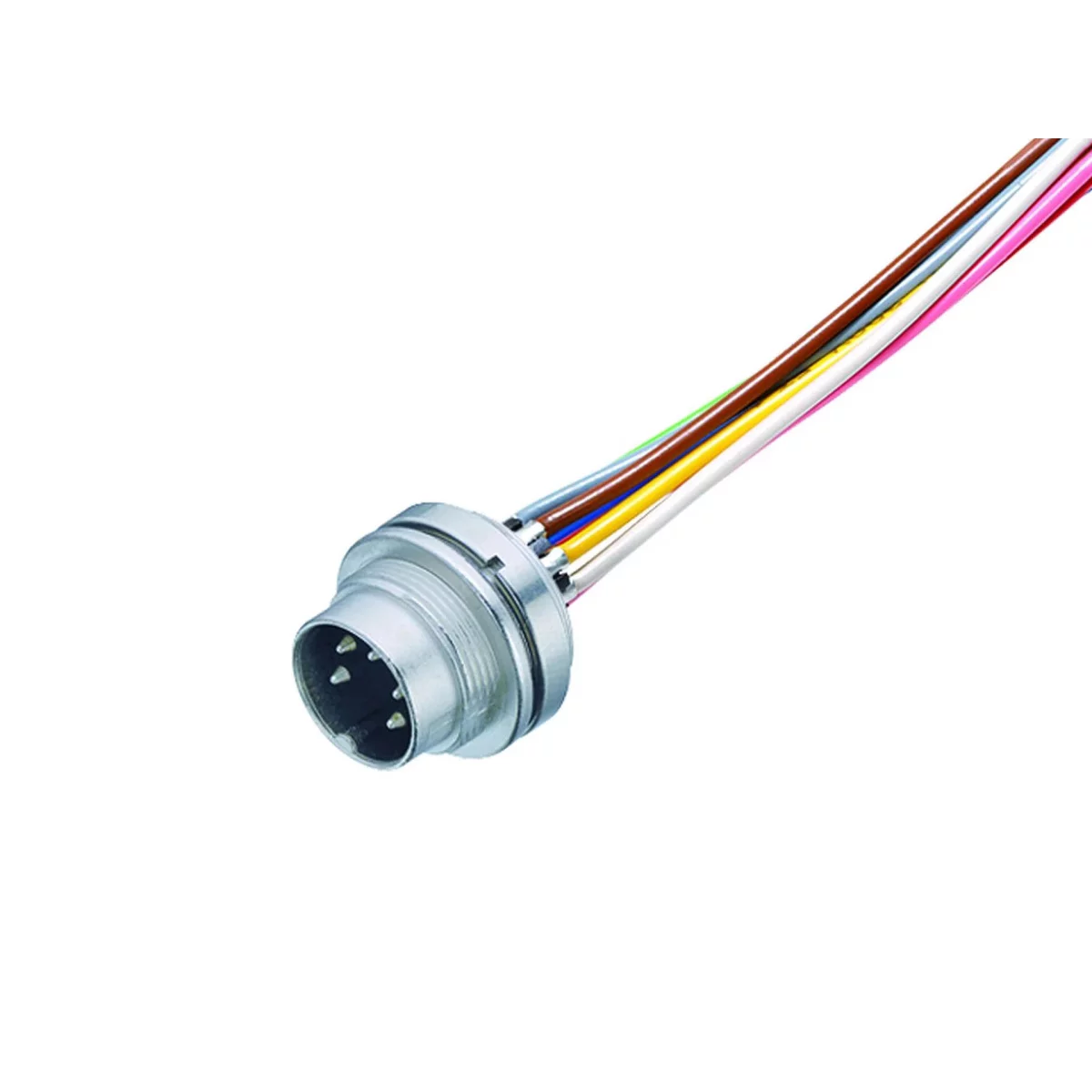

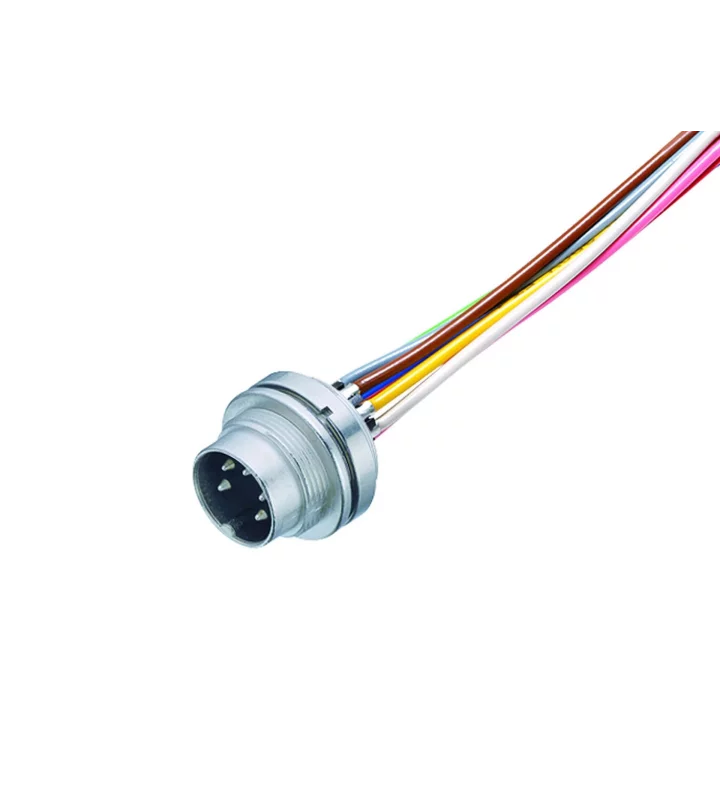

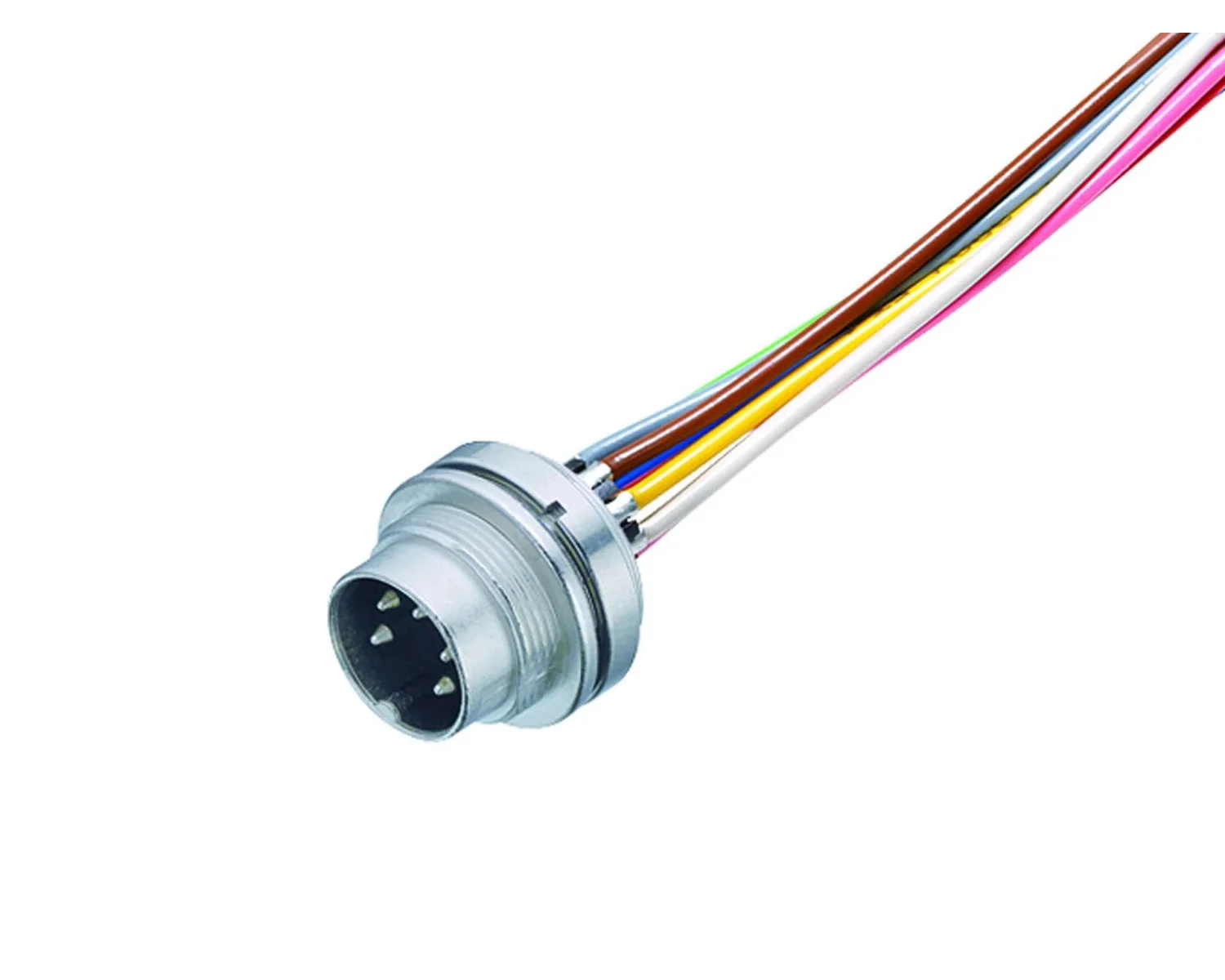

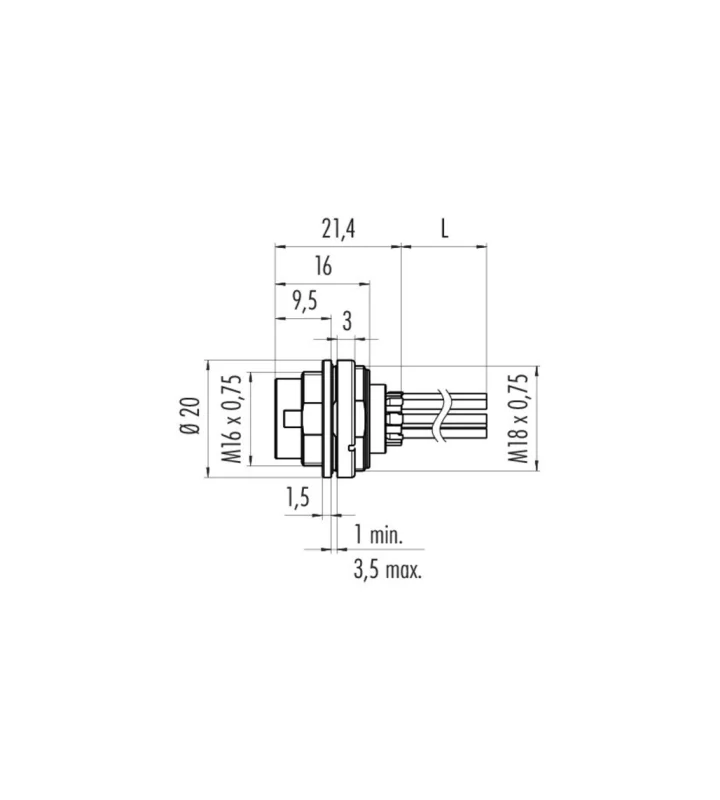

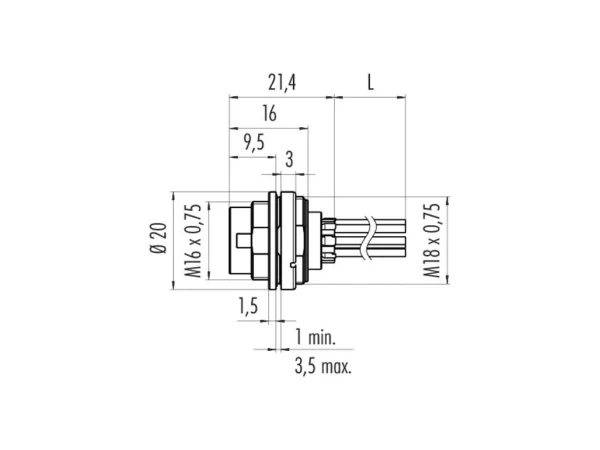

Male panel mount connector
With single wires
UL-approval
09 0173 702 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Strands |
| Upper temperature | +85 °C |
| Lower temperature | -30 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 100 V |
| Impuls voltage | 1200 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Number of contacts | Material group | Nominal voltage | Contact terminal | Impuls voltage | Connector Diameter (mm) | Upper temperature | Lower temperature | Nominal Voltage | Connector Diameter |
|---|---|---|---|---|---|---|---|---|---|---|
| 09 0123 782 06 | 6 | II | 300 V | Strands | 1500 V | 20 mm | +85 °C | -30 °C | >200 - ≤400 V | 20 mm |
| 09 0127 370 07 | 7 | III | 60 V | Crimp | 500 V | 17 mm | +95 °C | -40 °C | ≤200 V | 17 mm |
| 09 0127 320 07 | 7 | II | 100 V | Single wires | 1200 V | 17 mm | +95 °C | -40 °C | ≤200 V | 17 mm |
| 09 0127 702 07 | 7 | II | 100 V | Strands | 1200 V | 20 mm | +85 °C | -30 °C | ≤200 V | 20 mm |
| 09 0127 782 07 | 7 | II | 100 V | Strands | 1200 V | 20 mm | +85 °C | -30 °C | ≤200 V | 20 mm |
| 09 0173 370 08 | 8 | III | 60 V | Crimp | 500 V | 17 mm | +95 °C | -40 °C | ≤200 V | 17 mm |
| 09 0173 320 08 | 8 | II | 100 V | Single wires | 1200 V | 17 mm | +95 °C | -40 °C | ≤200 V | 17 mm |
