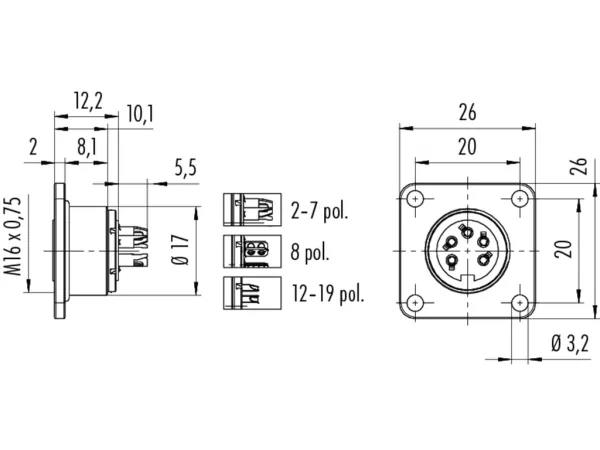

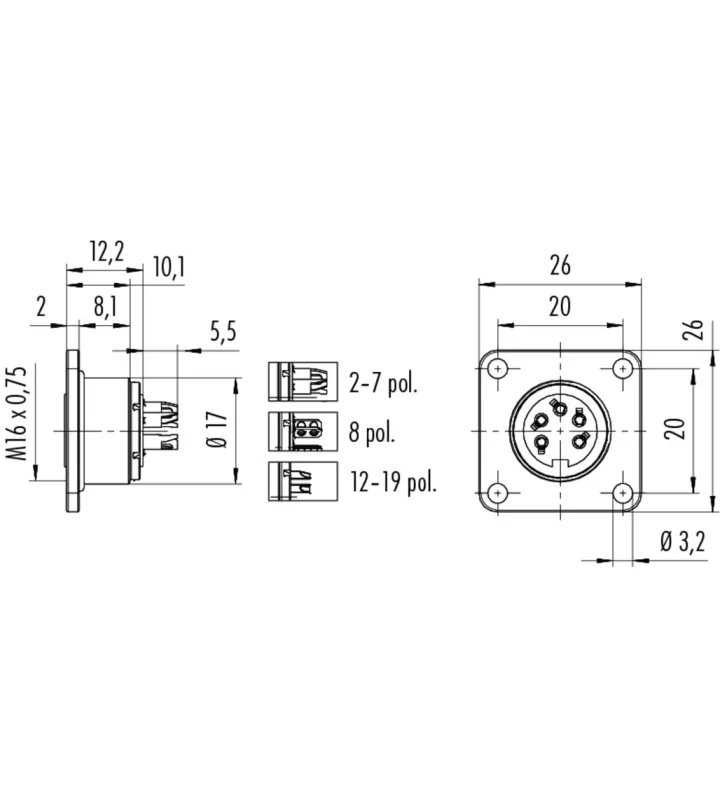

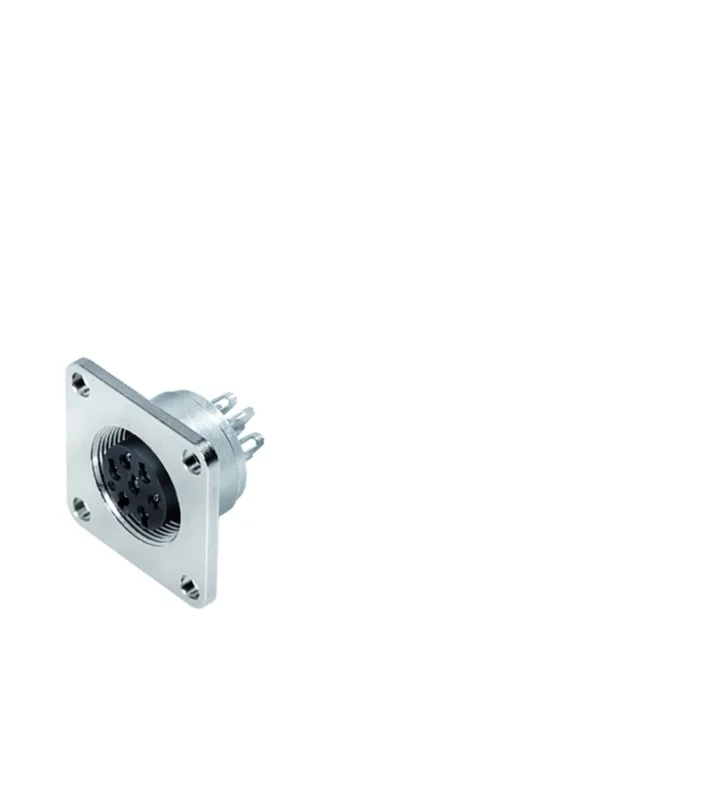

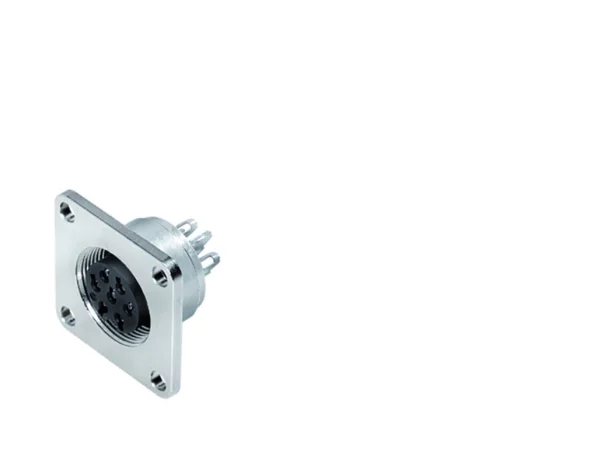

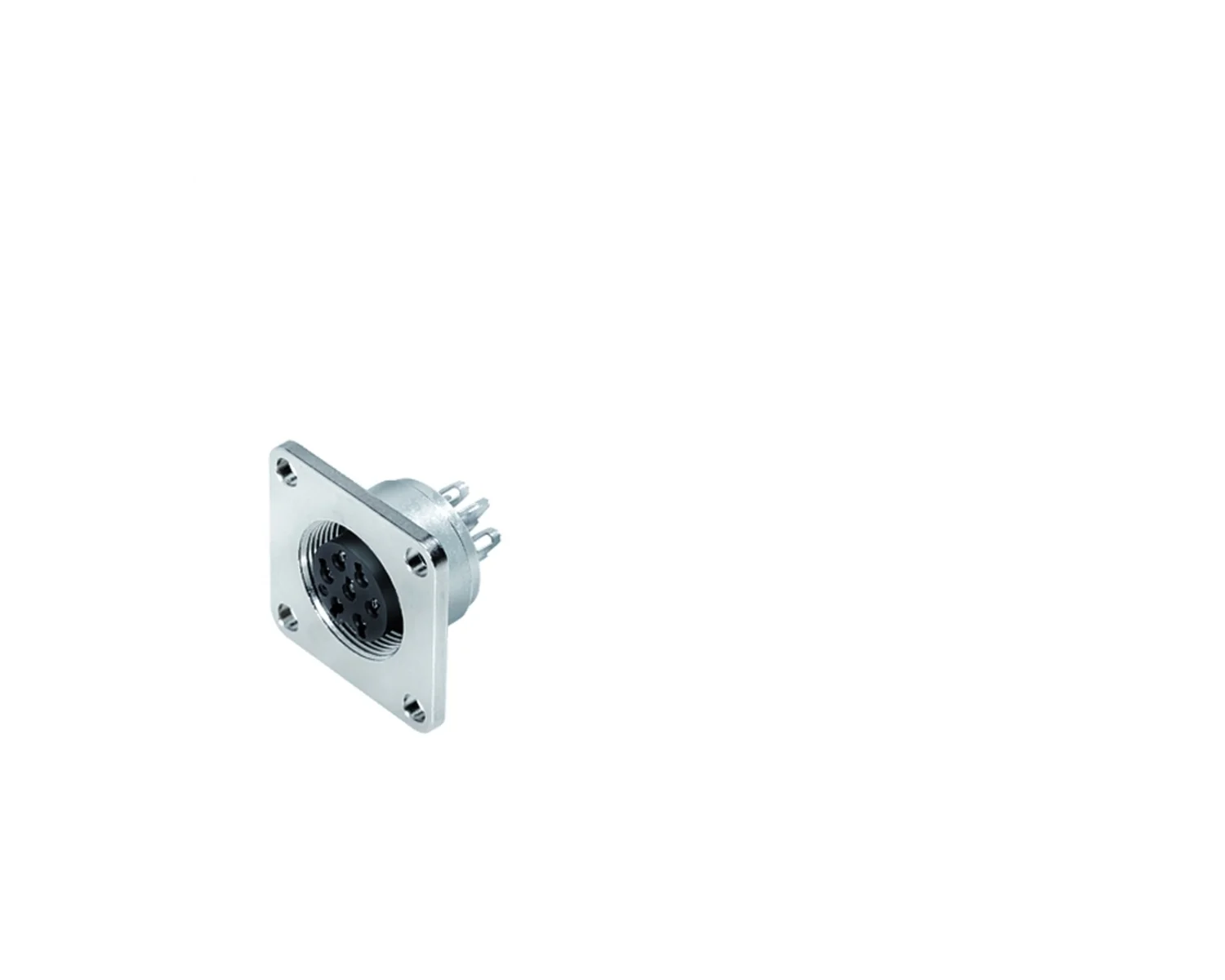

Female panel mount connector
Rectangular flange
Solder
09 0174 300 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 17 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|
| 09 0104 300 02 | >5 - ≤10 A | 2 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0108 300 03 | >5 - ≤10 A | 3 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0112 300 04 | >5 - ≤10 A | 4 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0116 300 05 | >5 - ≤10 A | 5 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0124 300 06 | ≤5 A | 6 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0128 300 07 | ≤5 A | 7 | 60 V | 500 V | 5 mΩ | ≤200 V | 0.75 mm² |
| 09 0132 300 12 | ≤5 A | 12 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0454 300 14 | ≤5 A | 14 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0508 300 16 | ≤5 A | 16 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0464 300 19 | ≤5 A | 19 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
