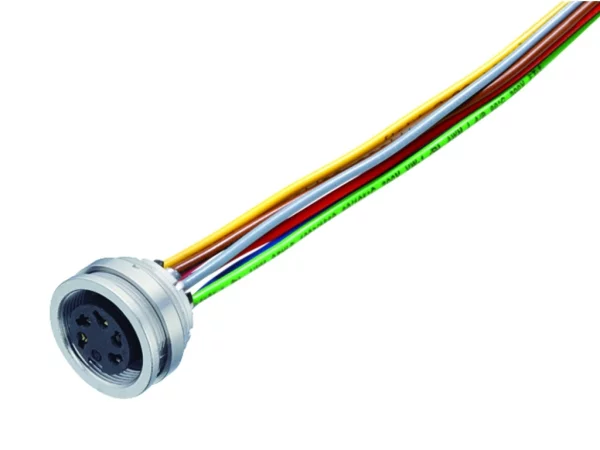

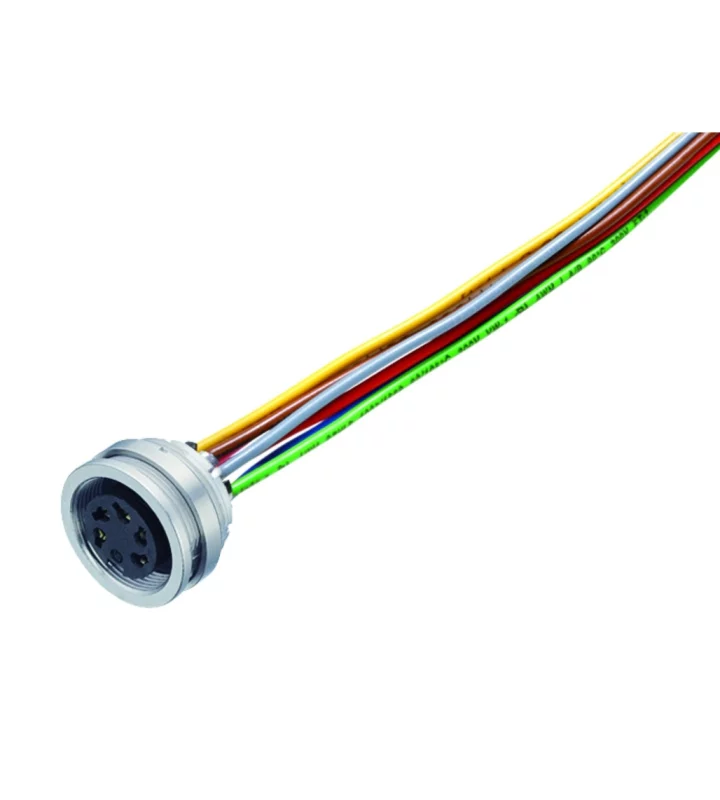

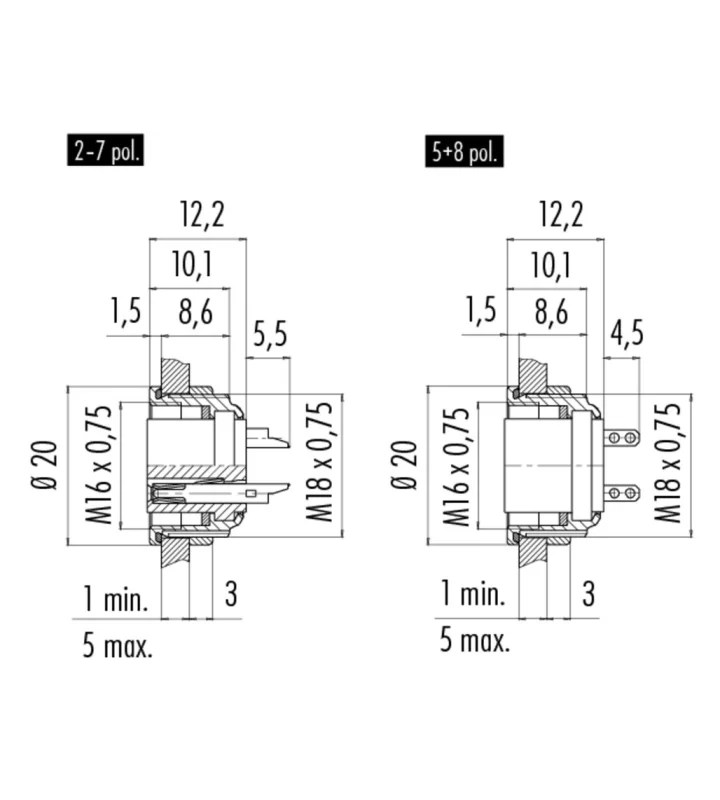

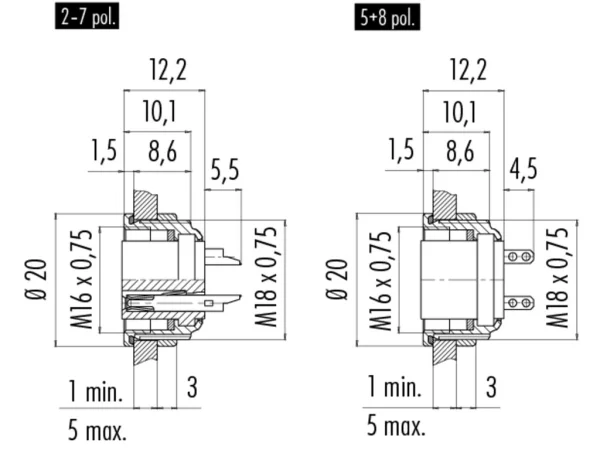

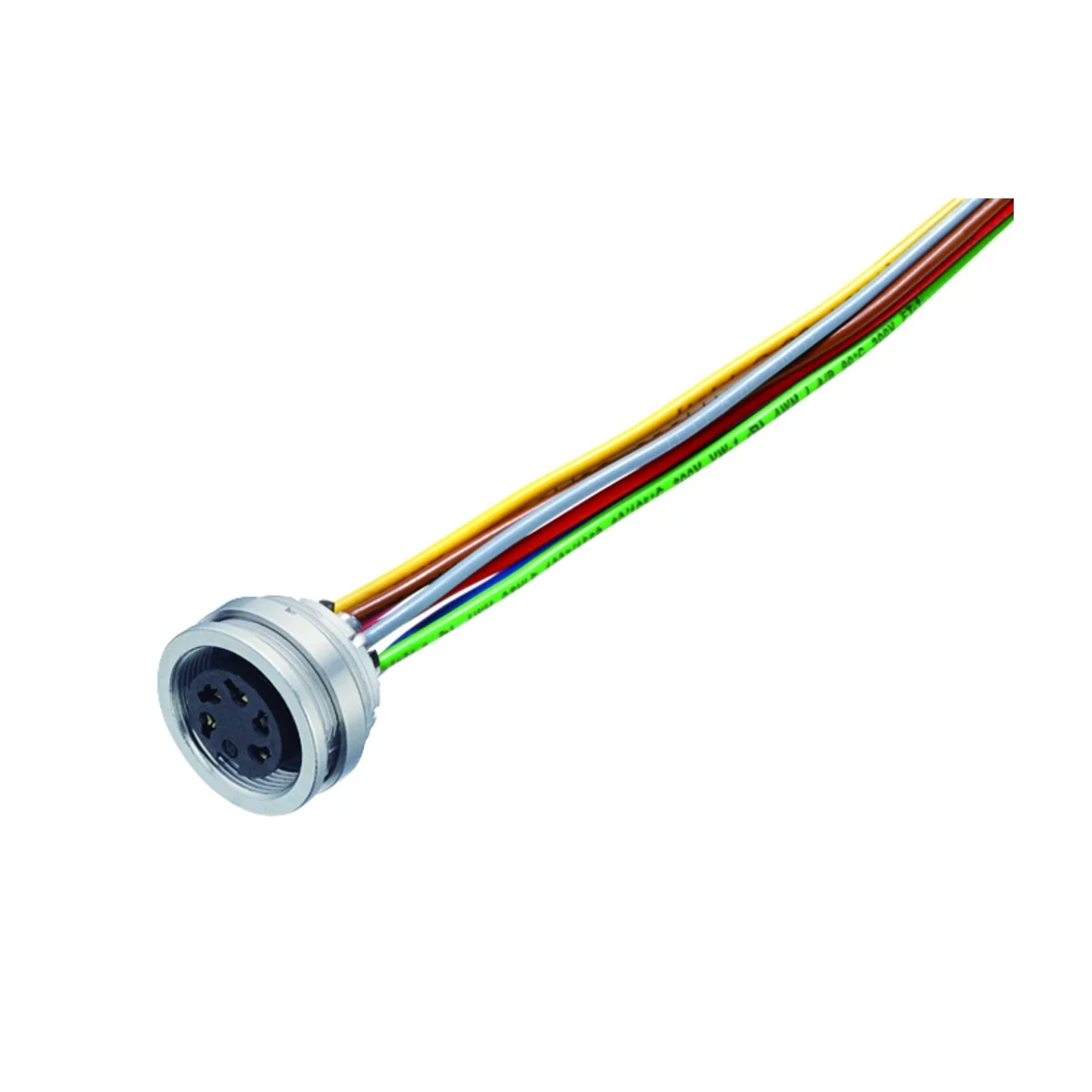

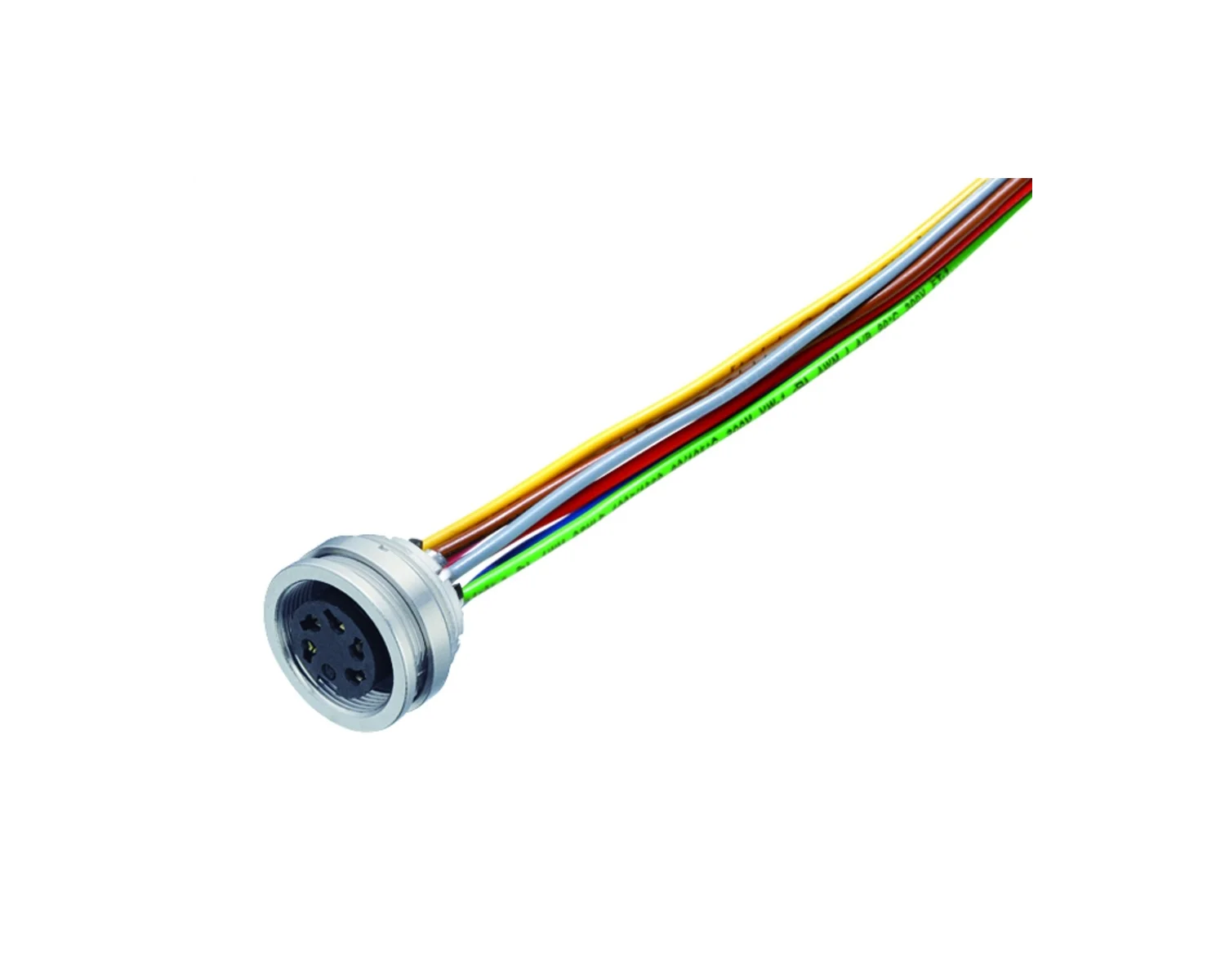

Female panel mount connector
With single wires
UL-approval
09 0174 702 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Strands |
| Upper temperature | +85 °C |
| Lower temperature | -30 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 100 V |
| Impuls voltage | 1200 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|
| 09 0112 702 04 | 4 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0116 702 05 | 5 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0124 702 06 | 6 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0128 702 07 | 7 | 100 V | 1200 V | ≤200 V |
