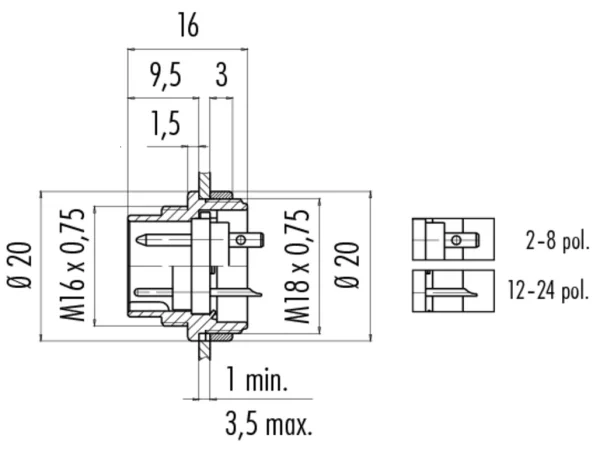

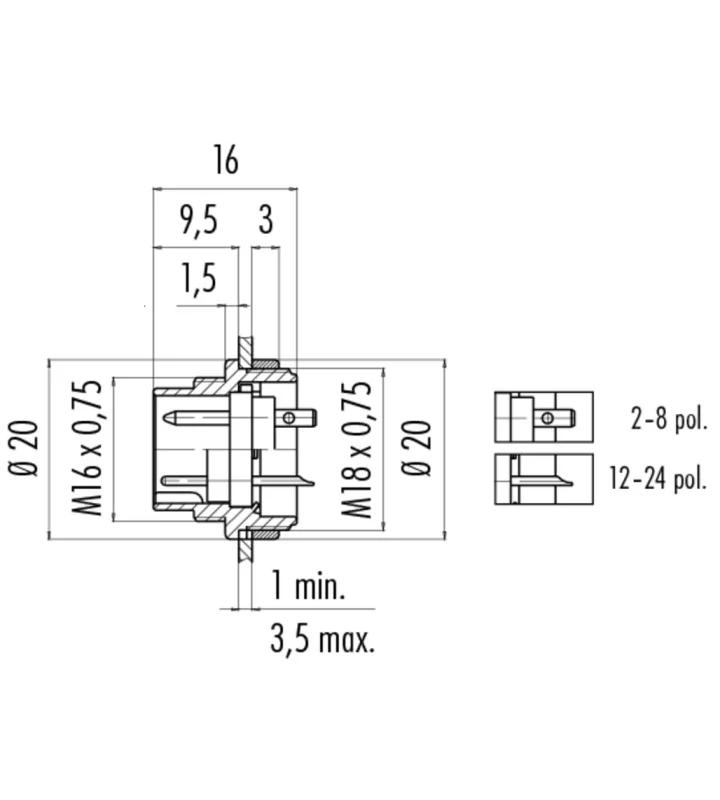

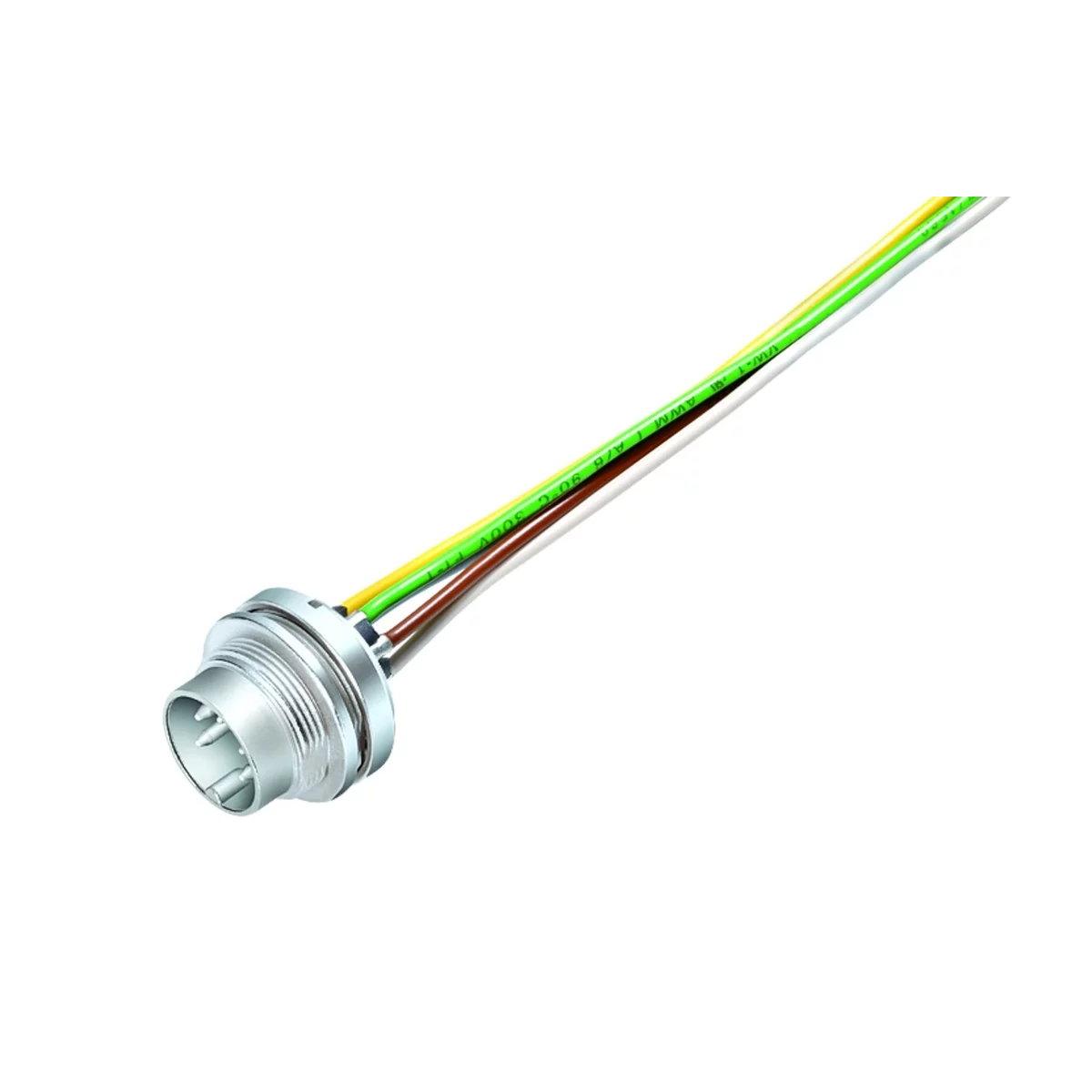

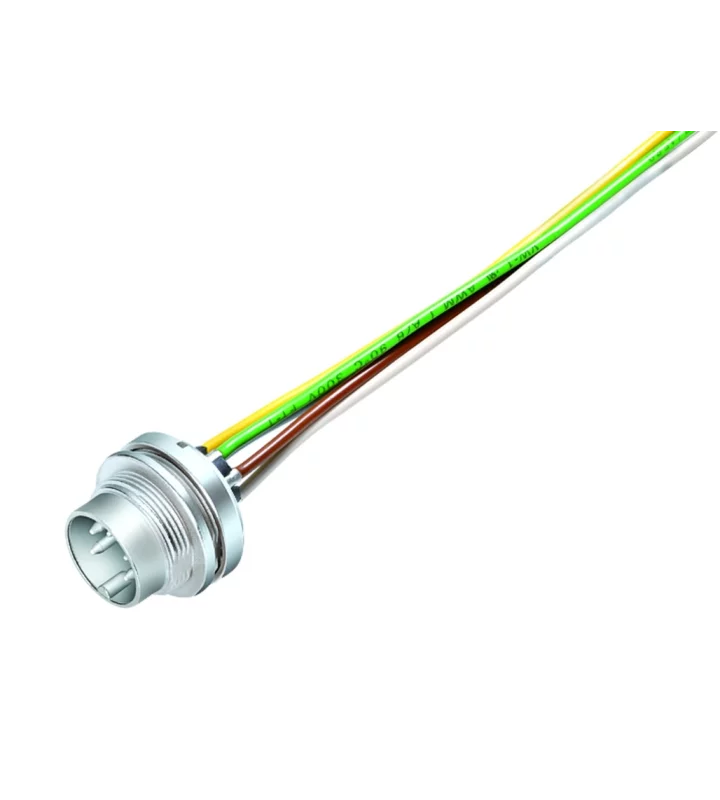

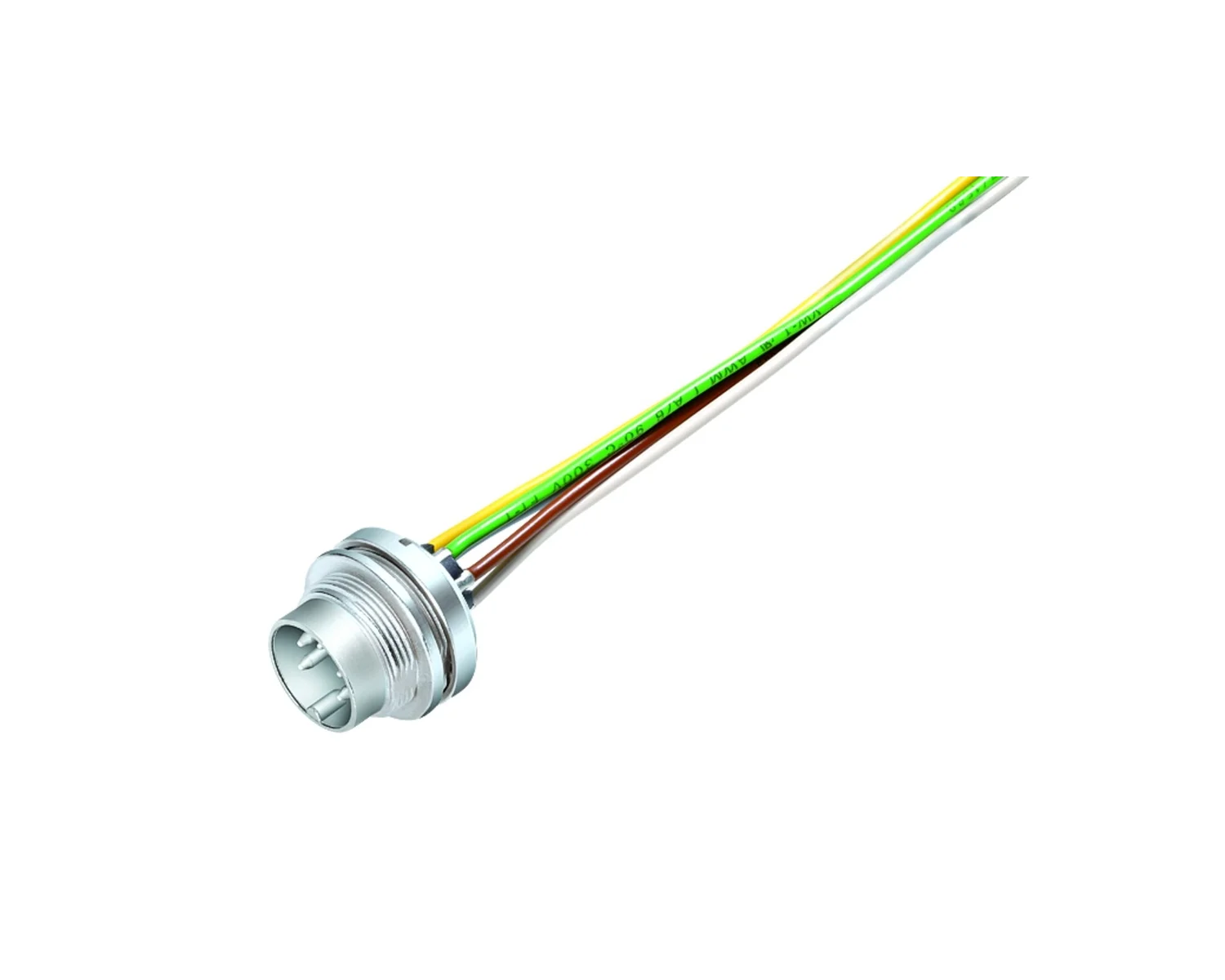

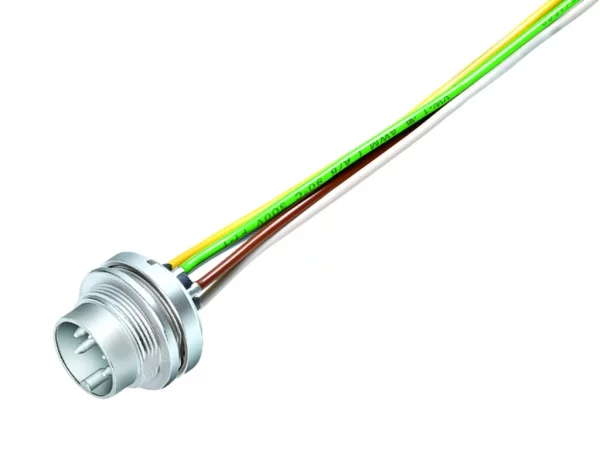

Male panel mount connector
with single wires
09 0311 702 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -30 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 09 0315 702 05 | 5 | 300 V | Strands | 1500 V | >200 - ≤400 V |
| 09 0323 702 06 | 6 | 300 V | Strands | 1500 V | >200 - ≤400 V |
| 09 0327 702 07 | 7 | 100 V | Strands | 1200 V | ≤200 V |
| 09 0473 702 08 | 8 | 100 V | Strands | 1200 V | ≤200 V |
