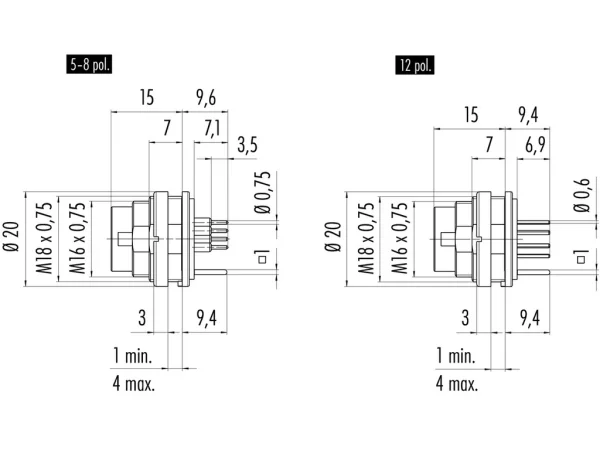

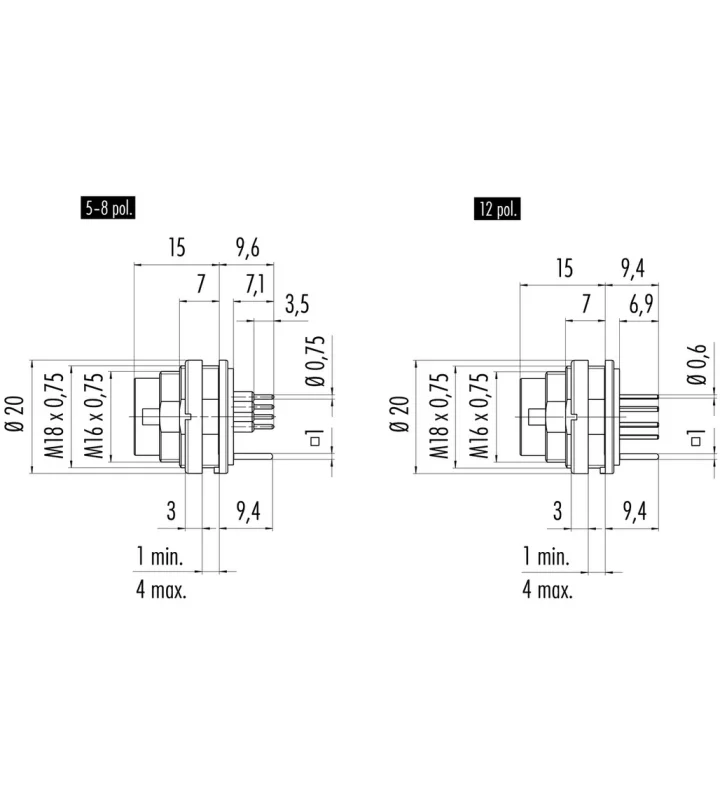

Male panel mount connector
Dip solder, front fastened, with shield connection
09 0323 290 06
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Male |
| Number of contacts | 6 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT ( UL 94 V-0) |
| Material of housing | Brass nickel plated / zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage |
|---|---|---|---|---|---|---|---|
| 09 0315 290 05 | >5 - ≤10 A | 5 | 250 V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V |
| 09 0473 290 08 | ≤5 A | 8 | 60 V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V |
| 09 0331 290 12 | ≤5 A | 12 | 60 V | 500 V | 3 mΩ | Au (Gold) | ≤200 V |
