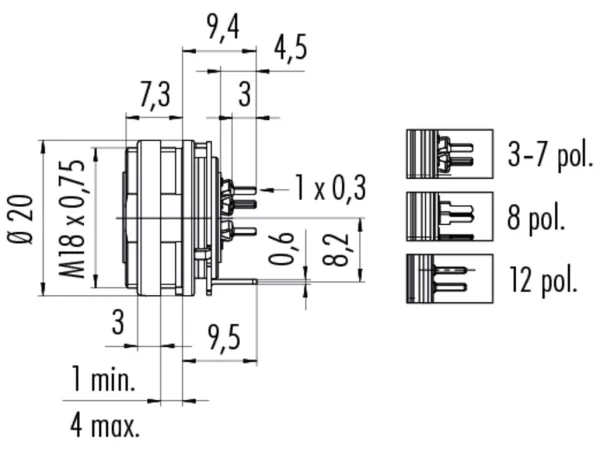

Female panel mount connector
With mass contact
09 0332 290 12
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 680 |
| Gender | Female |
| Number of contacts | 12 |
| Contact terminal | Dip-solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Nominal Voltage |
|---|---|---|---|---|---|---|
| 09 0308 290 03 | >5 - ≤10 A | 3 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0312 290 04 | >5 - ≤10 A | 4 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0316 290 05 | >5 - ≤10 A | 5 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0324 290 06 | ≤5 A | 6 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0328 290 07 | ≤5 A | 7 | 125 V | 800 V | 5 mΩ | ≤200 V |
| 09 0474 290 08 | ≤5 A | 8 | 60 V | 500 V | 5 mΩ | ≤200 V |
