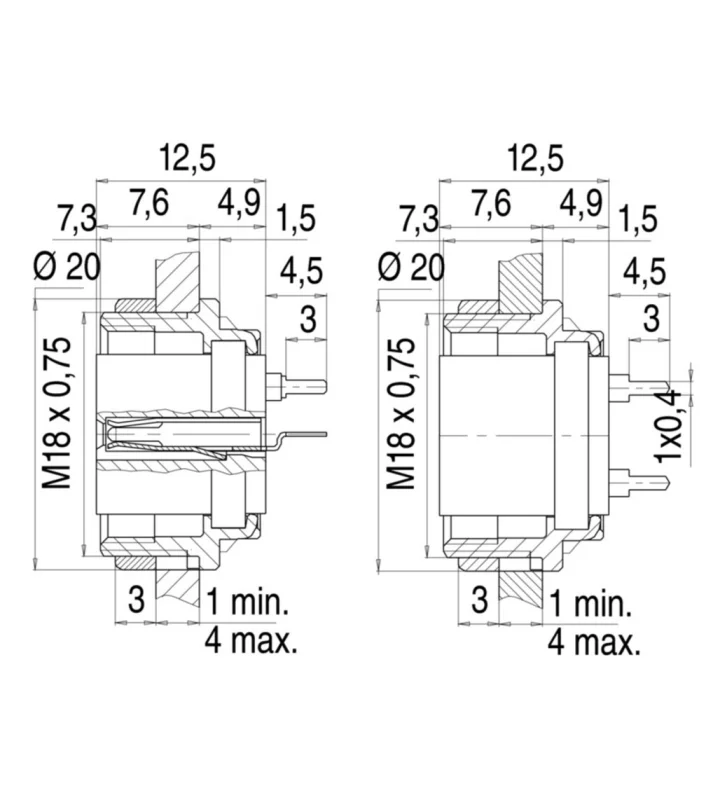

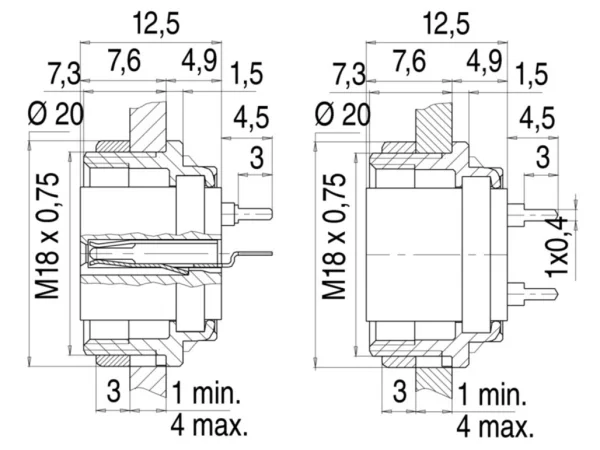

Female panel mount connector
Dip solder, front fastened
09 0332 90 12
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Female |
| Number of contacts | 12 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 60 (32) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage |
|---|---|---|---|---|---|---|---|
| 09 0304 90 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V |
| 09 0308 90 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V |
| 09 0312 90 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V |
| 09 0316 90 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V |
| 09 0320 90 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V |
| 09 0324 90 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V |
| 09 0328 90 07 | ≤5 A | 7 | 125 (32) V | 800 V | 5 mΩ | Ag (Silver) | ≤200 V |
| 09 0474 90 08 | ≤5 A | 8 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V |
| 09 0304 99 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V |
| 09 0308 99 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V |
| 09 0312 99 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V |
| 09 0316 99 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V |
| 09 0320 99 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V |
| 09 0324 99 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V |
| 09 0328 99 07 | ≤5 A | 7 | 125 (32) V | 800 V | 3 mΩ | Au (Gold) | ≤200 V |
| 09 0474 99 08 | ≤5 A | 8 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V |
| 09 0054 90 14 | ≤5 A | 14 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V |
| 09 0340 90 16 | ≤5 A | 16 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V |
| 09 0336 90 19 | ≤5 A | 19 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V |
| 09 0198 90 24 | ≤5 A | 24 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V |
