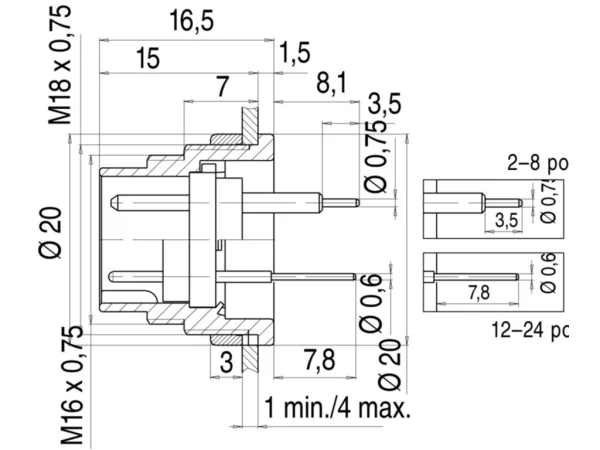

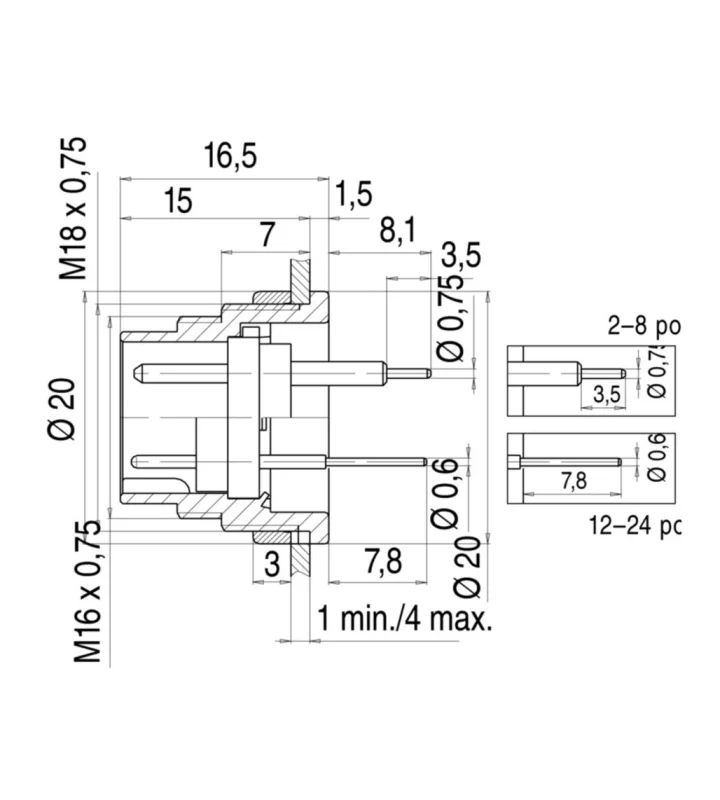

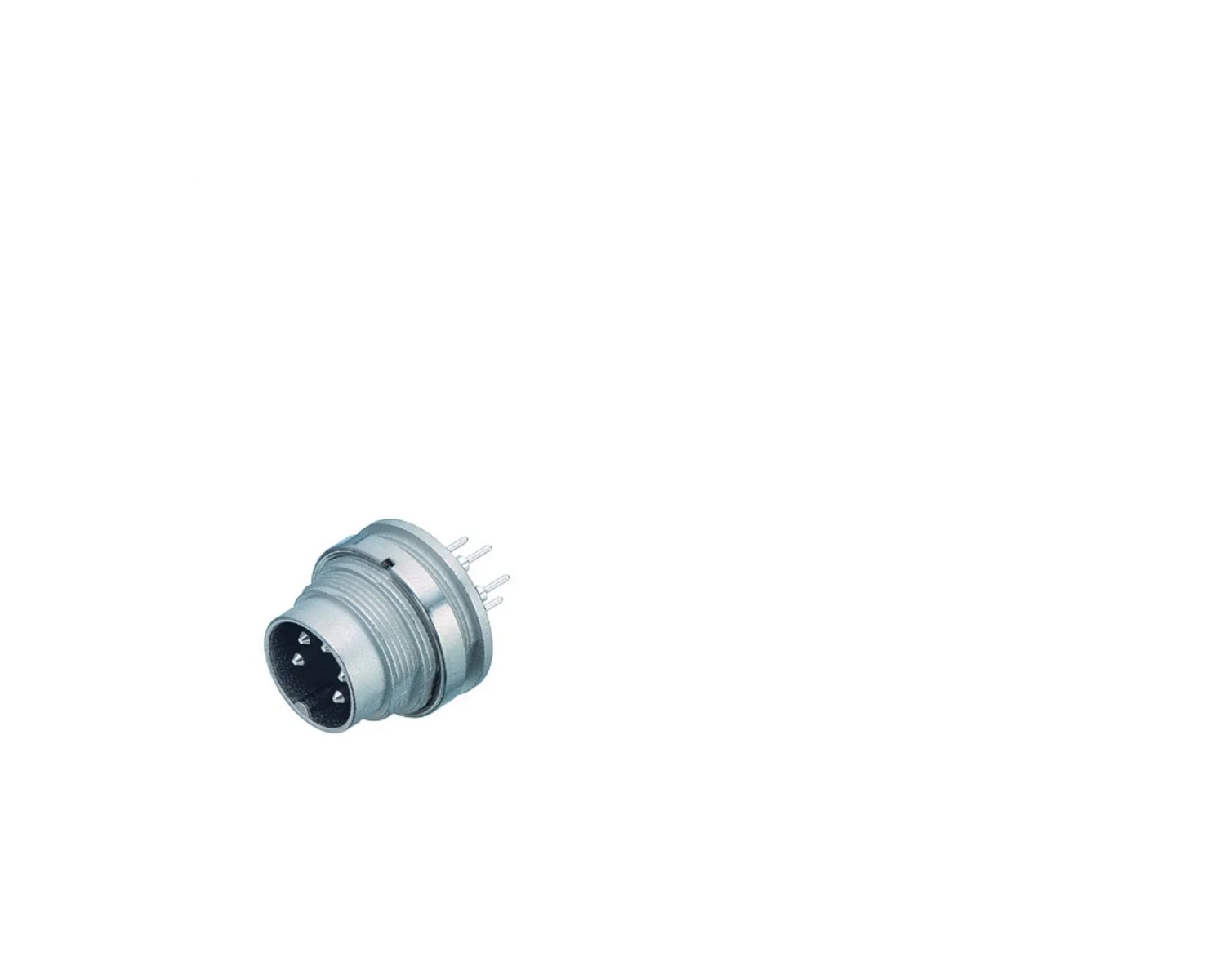

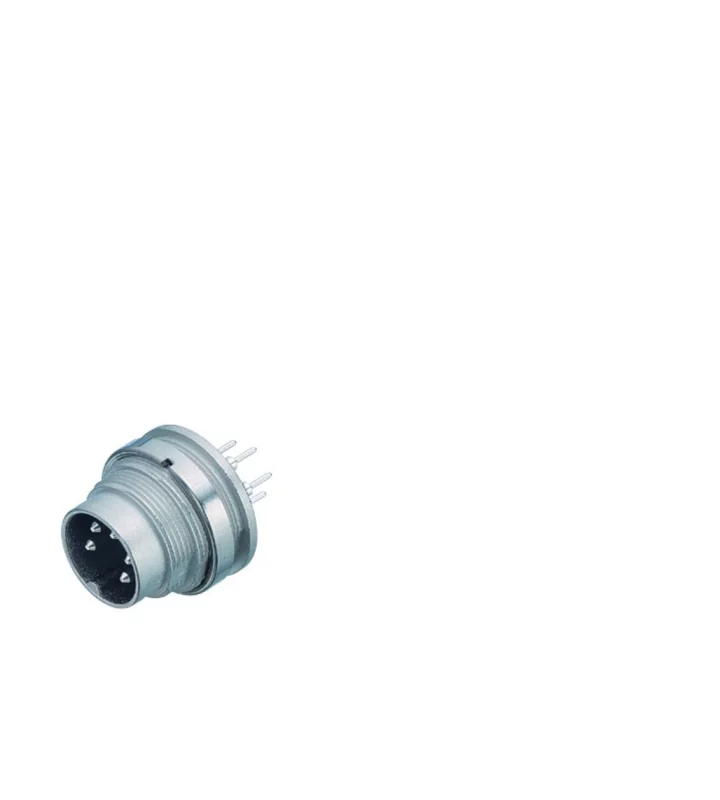

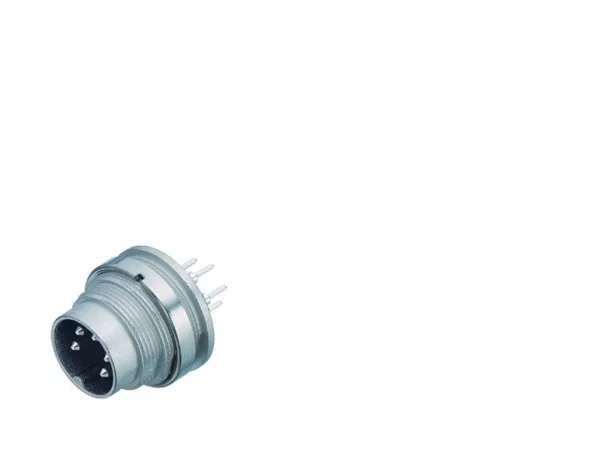

Male panel mount connector
Dip solder, front fastened
09 0339 90 16
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Male |
| Number of contacts | 16 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.25 mm² |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 60 (32) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 09 0303 90 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 09 0307 90 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 09 0311 90 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 09 0315 90 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 09 0319 90 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 09 0323 90 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 09 0327 90 07 | ≤5 A | 7 | 125 (32) V | 800 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 09 0473 90 08 | ≤5 A | 8 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 09 0303 99 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 09 0307 99 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 09 0311 99 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 09 0315 99 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 09 0319 99 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 09 0323 99 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 09 0327 99 07 | ≤5 A | 7 | 125 (32) V | 800 V | 3 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 09 0331 90 12 | ≤5 A | 12 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 09 0053 90 14 | ≤5 A | 14 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 09 0335 90 19 | ≤5 A | 19 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 09 0197 90 24 | ≤5 A | 24 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.14 mm² |
