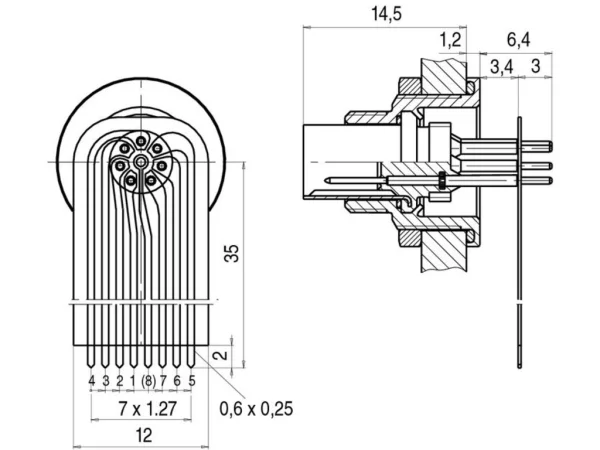

Male panel mount connector

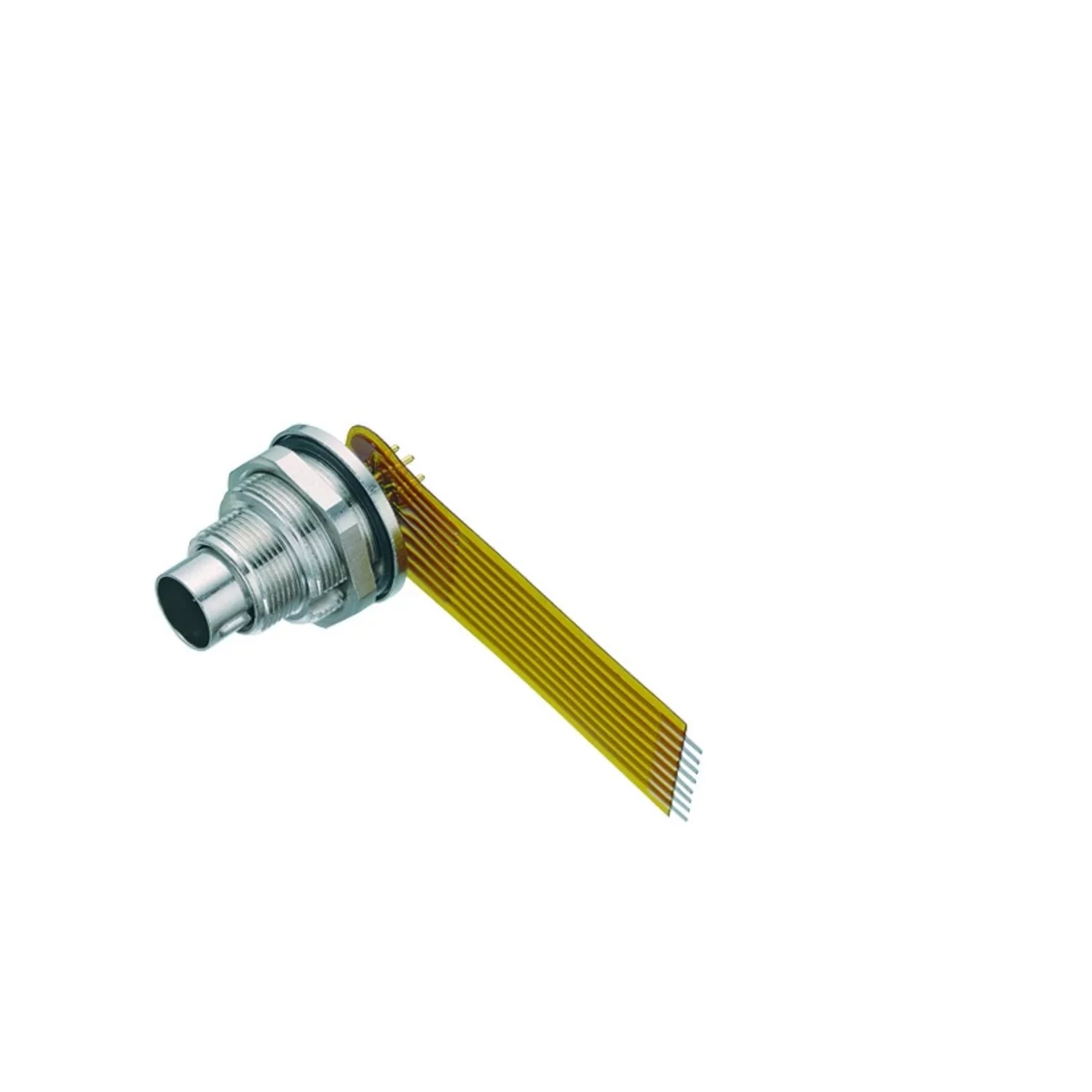

With flexible PCB
09 0427 65 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M9 |
|---|---|
| Series | Subminiature |
| Subseries | 712-702 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M9) |
| Mating cycles | >500 |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts |
|---|---|
| 09 0423 65 07 | 7 |
