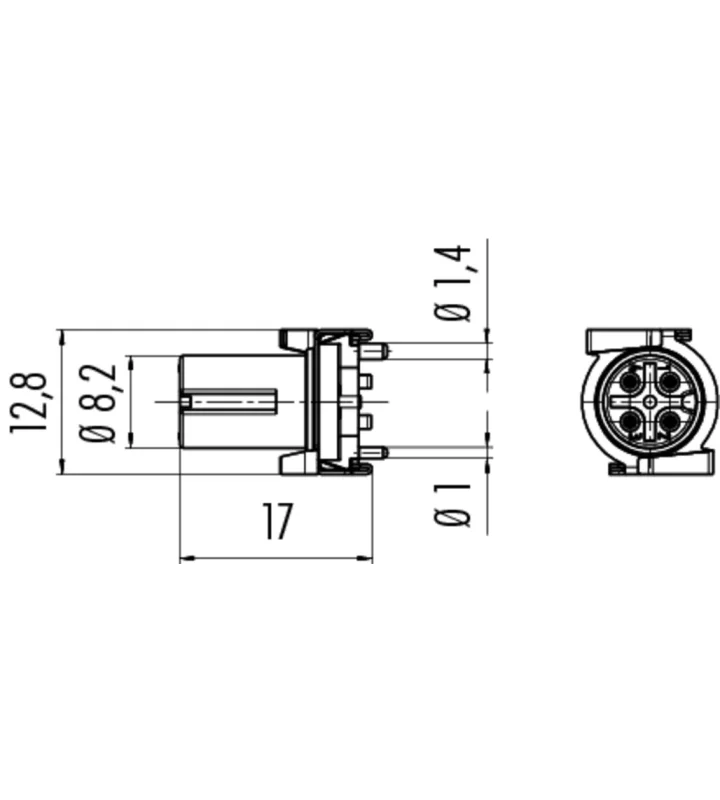

Female panel mount connector
SMT, Shieldable
09 0432 601 04
Specificaties
General Characteristics
|
Screw size |
M12-A
|
|
Series |
Sensor
|
|
Subseries |
713-763
|
|
Gender |
Female
|
|
Number of contacts |
4
|
|
Contact terminal |
SMT
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-40 °C
|
|
Protection degree |
IP67
|
|
Locking system |
Screw (M12-A)
|
|
Mating cycles |
>100
|
|
Connector Diameter |
8.2 mm
|
Electrical parameters
|
Nominal current |
4 A
|
|
Nominal voltage |
250 V
|
|
Impuls voltage |
2500 V
|
|
Max. contact resistance |
3 mΩ
|
|
Pollution degree |
3
|
|
Overvoltage categorie |
II
|
Material
|
Material group |
III
|
|
Material of insert |
LCP - GF30
|
|
Material of contact |
CuSn (Bronze)
|
|
Plating |
Au (Gold)
|
