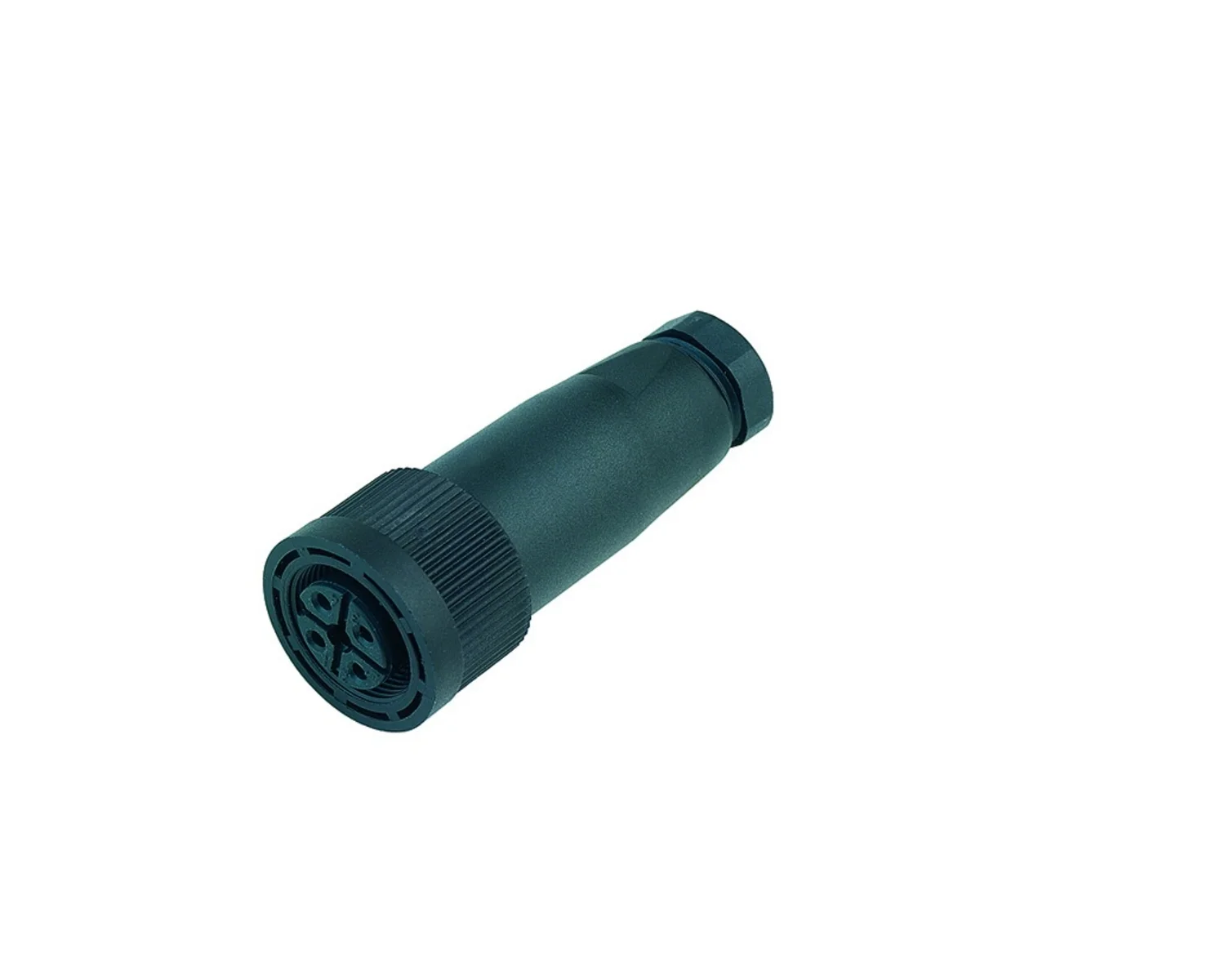

Female cable connector
UL-approval
09 0440 010 04
Specificaties
General Characteristics
| Screw size | M18 |
|---|---|
| Series | Sensor |
| Subseries | 714 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M18) |
| Mating cycles | >50 |
| Connector Diameter | 25.5 mm |
| Cable outlet | 6,5-8 (UL) mm |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 16 (5A UL) |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 4000 V |
| Max. contact resistance | 8 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 HB) / PBT (UL 94-0) |
| Material of housing | PA (UL 94 HB) / PBT (UL 94-0) |
| Material of contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) |
Varianten
| Art. number | Nominal current | Cable outlet |
|---|---|---|
| 09 0440 10 04 | >10 - ≤20 A | 6,5-8 mm |
| 99 0440 16 04 | >10 - ≤20 A | 10-12 mm |
| 99 0440 016 04 | >10 - ≤20 A | ≤5 A | 10-12 (UL) mm |
